MSM9225 - CAN (Controller Area Network) Controller

OKI electronic componets

Datasheet Details

Part number	MSM9225
Manufacturer	OKI electronic componets
File Size	488.73 KB
Description	CAN (Controller Area Network) Controller
Datasheet	MSM9225_OKIelectroniccomponets.pdf

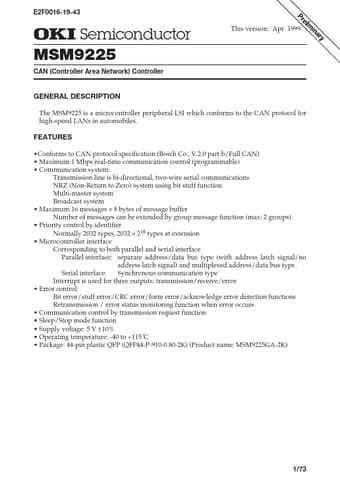

The MSM9225 is a microcontroller peripheral LSI which conforms to the CAN protocol for high-speed LANs in automobiles.

Conforms to CAN protocol specification (Bosch Co. , V.2.0 part b/Full CAN).
Maximum 1 Mbps real-time communication control (programmable).
Communication system: Transmission line is bi-directional, two-wire serial communications NRZ (Non-Return to Zero) system using bit stuff function Multi-master system Broadcast system.
Maximum 16 messages.
8 bytes of message buffer Number of messages can be extended by group message function (max: 2 groups).
Pr.
