MSM98S000 - (MSM98S000 / MSM38S000) 0.8m Mixed 3-V/5-V Sea of Gates and Customer Structured Arrays

Description

OKI’s 0.8µm ASIC products, specially designed for mixed 3-V/5-V applications, are now available in both Sea Of Gates (SOG) and Customer Structured Array (CSA) architectures.

Features

  • 0.8µm drawn three-layer metal CMOS.
  • Mixed 3-V/5-V operation for low power and high speed.
  • SOG and CSA architecture availability.
  • Clock tree cells with ≤ 1.0-ns clock skew, worst-case (fan-out = 2000 at 70 MHz).
  • Usable density from 6.5k to 135k gates.
  • I/Os may be VSS, 3 V, 5 V, VDD, CMOS, TTL, and 3state, with 2-mA to 48-mA drive.
  • I/O level shifter cells, allowing any buffer (input, output, or bidirectional) to interface with 3 V or.

📥 Download Datasheet

Datasheet Details

Part number MSM98S000
Manufacturer OKI Electric
File Size 96.79 KB
Description (MSM98S000 / MSM38S000) 0.8m Mixed 3-V/5-V Sea of Gates and Customer Structured Arrays
Datasheet download datasheet MSM98S000 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MSM9802 (MSM9802/03/05) Voice Synthesis IC with Built-in Mask ROM OKI electronic componets
MSM9803 (MSM9802/03/05) Voice Synthesis IC with Built-in Mask ROM OKI electronic componets
MSM9805 (MSM9802/03/05) Voice Synthesis IC with Built-in Mask ROM OKI electronic componets
MSM9810 8-channel Mixing OKI ADPCM Type Voice Synthesis LSI OKI electronic componets
MSM9831-xxx VOICE SYNTHESIS LSI with on-chip 384Kbit MASK ROM OKI electronic componets

Other Datasheets by OKI Electric

Part Number Description
MSM92R Sea Of Gates and Customer Structured Arrays
MSM16911 1024 Bit Serial EPROM
MSM30R Sea Of Gates and Customer Structured Arrays
MSM32R Sea Of Gates and Customer Structured Arrays
MSM38256 32768 Word x 8 Bit Mask ROM

Full PDF Text Transcription

Click to expand full text

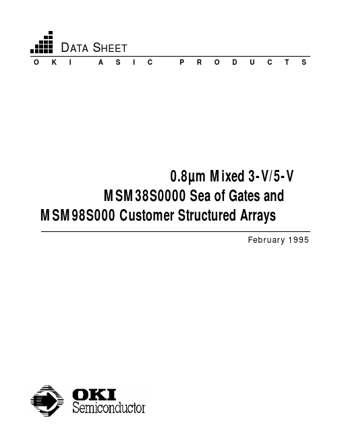

DATA SHEET O K I A S I C P R O D U C T S 0.8µm Mixed 3-V/5-V MSM38S0000 Sea of Gates and MSM98S000 Customer Structured Arrays February 1995 TRADEMARKS AIX, DOS, PC, and Windows are trademarks, and IBM is a registered trademark of IBM Corporation Apollo, Domain, and DomainOS are trademarks of Apollo Computer, a subsidiary of Hewlett-Packard AutoLogic, IDEA, QuickFault, QuickGrade, QuickPath, QuickSim, and Mentor Graphics are trademarks of Mentor Graphics Corporation Composer, Concept, HDL, Leapfrog, PLI, Veritime, and VHDL are trademarks, and Cadence, DRACULA, TestScan, Verifault, and Verilog are registered trademarks of Cadence Design Systems, Inc. Design Compiler, HDL/VHDL Compiler, Test Compiler, and VSS are trademarks of Synopsys, Inc.
