MSM9210 - 32-Bit Duplex/Triplex (1/2 duty / 1/3 duty) VF Controller/Driver with Digital Dimming

Description

This version: Sep.

1999 MSM9210 Previous version: Aug.

The MSM9210 is a full CMOS controller/driver for Duplex or Triplex (1/2 duty or 1/3 duty) vacuum fluorescent display tube.

Features

  • a selection of a master mode and a slave mode, and therefore it can be used to expand segments for the VFD driver with keyscan and A/D converter function. MSM9210 provides an interface with a microcontroller only by three signal lines: DATA IN, CLOCK and CS.

📥 Download Datasheet

Datasheet Details

Part number MSM9210
Manufacturer OKI Electric
File Size 219.51 KB
Description 32-Bit Duplex/Triplex (1/2 duty / 1/3 duty) VF Controller/Driver with Digital Dimming
Datasheet download datasheet MSM9210 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MSM92R Sea Of Gates and Customer Structured Arrays OKI
MSM9026 Emulation Board for S1207 Mosel Vitelic
MSM9141S IVR Duplication Gang Writer Mosel Vitelic
MSM942038-24 Smart Motor MPS
MSM9520RS Custom Integrated Circuit Replacement Module ETC

Other Datasheets by OKI Electric

Part Number Description
MSM9201-01 Fluorescent Display Tube Controller Driver
MSM9202-01 5 x 7 Dot Character x 16-Digit Display Controller/Driver with Character RAM
MSM9223 27-Bit Duplex/Triplex VFD Controller/Driver with Digital Dimming / ADC and Keyscan
MSM9225 CAN (Controller Area Network) Controller
MSM9000B-xx DOT MATRIX LCD CONTROLLER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

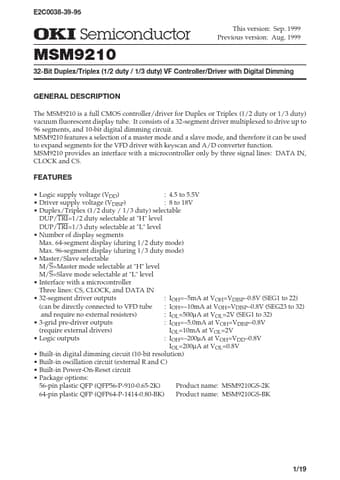

E2C0038-39-95 ¡ Semiconductor ¡ Semiconductor MSM9210 GENERAL DESCRIPTION This version: Sep. 1999 MSM9210 Previous version: Aug. 1999 32-Bit Duplex/Triplex (1/2 duty / 1/3 duty) VF Controller/Driver with Digital Dimming The MSM9210 is a full CMOS controller/driver for Duplex or Triplex (1/2 duty or 1/3 duty) vacuum fluorescent display tube. It consists of a 32-segment driver multiplexed to drive up to 96 segments, and 10-bit digital dimming circuit. MSM9210 features a selection of a master mode and a slave mode, and therefore it can be used to expand segments for the VFD driver with keyscan and A/D converter function. MSM9210 provides an interface with a microcontroller only by three signal lines: DATA IN, CLOCK and CS. FEATURES • Logic supply voltage (VDD) : 4.5 to 5.
