MSM6641 - Built-in Remote Control Transmission Circuit 4-Bit Microcontroller

Product Overview

OKI electronic componets

Part number	MSM6641
Manufacturer	OKI electronic componets
File Size	150.68 KB
Description	Built-in Remote Control Transmission Circuit 4-Bit Microcontroller
Datasheet	MSM6641 Datasheet

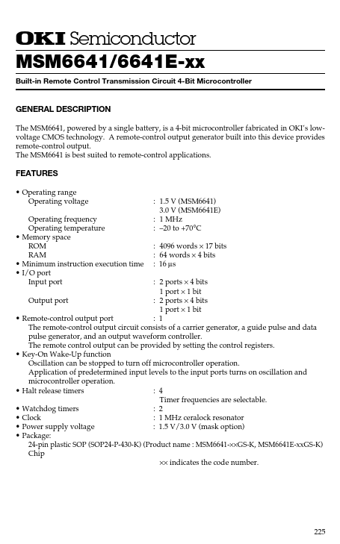

Additional preview pages of the MSM6641 datasheet.

The MSM6641, powered by a single battery, is a 4-bit microcontroller fabricated in OKI’s lowvoltage CMOS technology.

Operating range Operating voltage Operating frequency Operating temperature.
Memory space ROM RAM.
Minimum instruction execution time.
I/O port Input port : 1.5 V (MSM6641) 3.0 V (MSM6641E) : 1 MHz :.
20 to +70°C : 4096 words × 17 bits : 64 words × 4 bits : 16 µs : 2 ports.
4 bits 1 port.
1 bit Output port : 2 ports.
4 bits 1 port.
1 bit.
Remote-control output port : 1 The remote-control output circuit consists of a carri.
