MSM66101 - OLMS-66K Series 16-Bit Microcontroller

Product Overview

OKI electronic componets

Part number	MSM66101
Manufacturer	OKI electronic componets
File Size	569.96 KB
Description	OLMS-66K Series 16-Bit Microcontroller
Datasheet	MSM66101 Datasheet

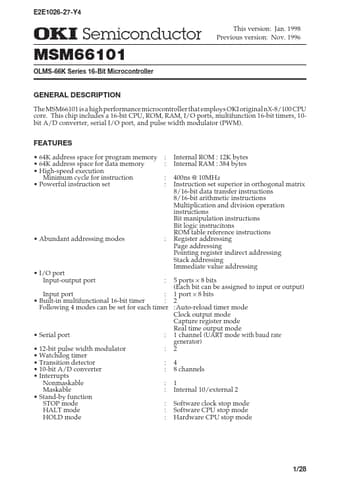

Additional preview pages of the MSM66101 datasheet.

The MSM66101 is a high performance microcontroller that employs OKI original nX-8/100 CPU core.

64K address space for program memory.
64K address space for data memory.
High-speed execution Minimum cycle for instruction.
Powerful instruction set : : : : Internal ROM : 12K bytes Internal RAM : 384 bytes 400ns @ 10MHz Instruction set superior in orthogonal matrix 8/16-bit data transfer instructions 8/16-bit arithmetic instructions Multiplication and division operation instructions Bit manipulation instructions Bit logic instrucitons ROM table reference in.
