MSM6606 - 80-DOT LCD DRIVER WITH KEY MATRIX

Product Overview

OKI electronic componets

Part number	MSM6606
Manufacturer	OKI electronic componets
File Size	132.00 KB
Description	80-DOT LCD DRIVER WITH KEY MATRIX
Datasheet	MSM6606 Datasheet
Additional preview pages of the MSM6606 datasheet.

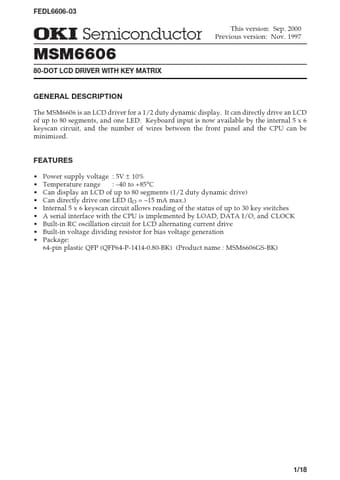

The MSM6606 is an LCD driver for a 1/2 duty dynamic display.

Power supply voltage : 5V ± 10% Temperature range :.
40 to +85°C Can display an LCD of up to 80 segments (1/2 duty dynamic drive) Can directly drive one LED (IO =.
15 mA max. ) Internal 5 x 6 keyscan circuit allows reading of the status of up to 30 key switches A serial interface with the CPU is implemented by LOAD, DATA I/O, and CLOCK Built-in RC oscillation circuit for LCD alternating curre.
