MSM64167E - 4-Bit Microcontroller with Built-in RC Oscillation Type A/D Converter and LCD Driver

Product Overview

OKI electronic componets

Datasheet Details

Part number	MSM64167E
Manufacturer	OKI electronic componets
File Size	268.57 KB
Description	4-Bit Microcontroller with Built-in RC Oscillation Type A/D Converter and LCD Driver
Datasheet	MSM64167E Datasheet

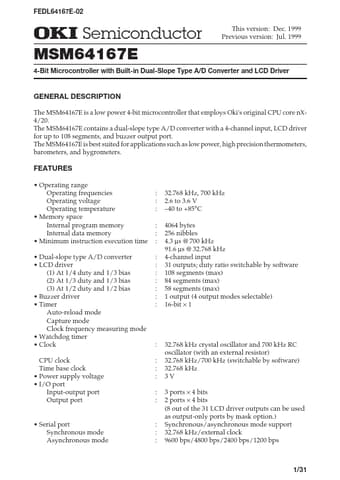

Additional preview pages of the MSM64167E datasheet.

Product details

Description

4-Bit Microcontroller with Built-in Dual-Slope Type A/D Converter and LCD Driver The MSM64167E is a low power 4-bit microcontroller that employs Oki's original CPU core nX4/20. The MSM64167E contains a dual-slope type A/D converter with a 4-channel input, LCD driver for up to 108 segments, and buzzer output port.The MSM64167E is best suited for applications such as low power, high precision thermometers, barometers, and hygrometers.

Features

Operating range Operating frequencies Operating voltage Operating temperature.
Memory space Internal program memory Internal data memory.
Minimum instruction execution time.
Dual-slope type A/D converter.
LCD driver (1) At 1/4 duty and 1/3 bias (2) At 1/3 duty and 1/3 bias (3) At 1/2 duty and 1/2 bias.
Buzzer driver.
Timer Auto-reload mode Capture mode Clock frequency measuring mode.
Watchdog timer.
Clock CPU clock.
