MSM64162 - 4-Bit Microcontroller with Built-in RC Oscillation Type A/D Converter and LCD Driver

Product Overview

OKI electronic componets

Part number	MSM64162
Manufacturer	OKI electronic componets
File Size	312.46 KB
Description	4-Bit Microcontroller with Built-in RC Oscillation Type A/D Converter and LCD Driver
Datasheet	MSM64162 Datasheet

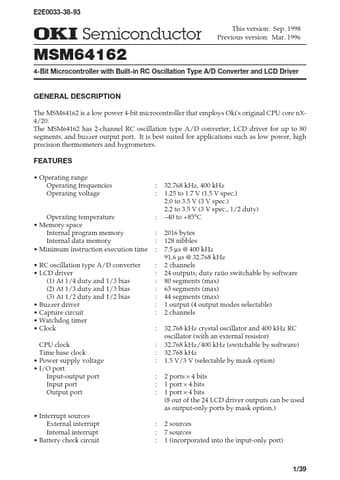

Additional preview pages of the MSM64162 datasheet.

The MSM64162 is a low power 4-bit microcontroller that employs Oki's original CPU core nX4/20.

Operating range Operating frequencies Operating voltage : : 32.768 kHz, 400 kHz 1.25 to 1.7 V (1.5 V spec. ) 2.0 to 3.5 V (3 V spec. ) 2.2 to 3.5 V (3 V spec. , 1/2 duty).
40 to +85°C 2016 bytes 128 nibbles 7.5 ms @ 400 kHz 91.6 ms @ 32.768 kHz 2 channels 24 outputs; duty ratio switchable by software 80 segments (max) 63 segments (max) 44 segments (max) 1 output (4 output modes selectable) 2 channels 32.768 kHz crystal oscillator and 400 kHz RC oscillator (with an external resisto.
