MSM64164C - 4-Bit Microcontroller with Built-in RC Oscillation Type A/D Converter and LCD Driver

Product Overview

OKI electronic componets

Part number	MSM64164C
Manufacturer	OKI electronic componets
File Size	299.96 KB
Description	4-Bit Microcontroller with Built-in RC Oscillation Type A/D Converter and LCD Driver
Datasheet	MSM64164C Datasheet

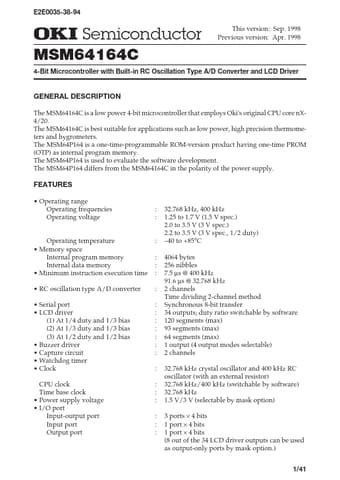

Additional preview pages of the MSM64164C datasheet.

The MSM64164C is a low power 4-bit microcontroller that employs Oki's original CPU core nX4/20.

Operating range Operating frequencies Operating voltage : : 32.768 kHz, 400 kHz 1.25 to 1.7 V (1.5 V spec. ) 2.0 to 3.5 V (3 V spec. ) 2.2 to 3.5 V (3 V spec. , 1/2 duty).
40 to +85°C 4064 bytes 256 nibbles 7.5 ms @ 400 kHz 91.6 ms @ 32.768 kHz 2 channels Time dividing 2-channel method Synchronous 8-bit transfer 34 outputs; duty ratio switchable by software 120 segments (max) 93 segments (max) 64 segments (max) 1 output (4 output modes selectable) 2 channels 32.768 kHz crystal osc.
