ML9090-01- - LCD Driver with Key Scanner and RAM

OKI electronic componets

The ML9090-01- by OKI electronic componets is a LCD Driver with Key Scanner and RAM. Below is the official datasheet preview.

📥 Download Datasheet

ML9090-01- LCD Driver with Key Scanner and RAM by OKI electronic componets - Datasheet Preview — Official preview page of the **ML9090-01-** LCD Driver with Key Scanner and RAM datasheet (OKI electronic componets).

Datasheet Details

Part number	ML9090-01-
Manufacturer	OKI electronic componets
File Size	322.90 KB
Description	LCD Driver with Key Scanner and RAM
Datasheet	ML9090-01-_OKIelectroniccomponets.pdf

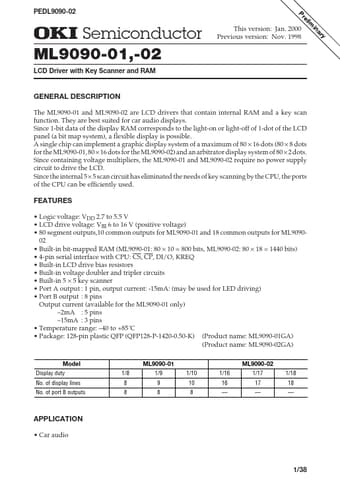

Additional preview pages of the ML9090-01- datasheet.

ML9090-01- Product details

Description

The ML9090-01 and ML9090-02 are LCD drivers that contain internal RAM and a key scan function. 16 dots (80 8 dots for the ML9090-01, 80 16 dots for the ML9090-02) and an arbitrator display system of 80 2

Features

Logic voltage: VDD 2.7 to 5.5 V.
LCD drive voltage: VBI 6 to 16 V (positive voltage).
80 segment outputs,10 common outputs for ML9090-01 and 18 common outputs for ML909002.
Built-in bit-mapped RAM (ML9090-01: 80.
10 = 800 bits, ML9090-02: 80.
18 = 1440 bits).
4-pin serial interface with CPU: CS, CP, DI/O, KREQ.
Built-in LCD drive bias resistors.
Built-in voltage doubler and tripler circuits.
Built-in 5.
5 key.
