NAU8811 Mono Audio Codec

NAU8811 Description

NAU8811 Mono Audio Codec with SPI emPowerAudio™ 1.GENERAL .
The NAU8811 is a cost effective and low power wideband MONO audio CODEC.

NAU8811 Features

* voice band digital filtering. Voice-band data is accepted by the audio interface (I2S). The DAC converter path includes filtering and mixing, programmable-gain amplifiers (PGA), and soft muting. The digital interface SPI have independent supply voltage to allow integration into multiple supply syste

NAU8811 Applications

* Functions include Automatic Level Control (ALC) with noise gate, PGA, standard audio interface I2S, and PCM with time slot assignment. The device provides one differential microphone input and one single ended auxiliary input (multi purpose). There are few variable gain control stages in the audio

📥 Download Datasheet

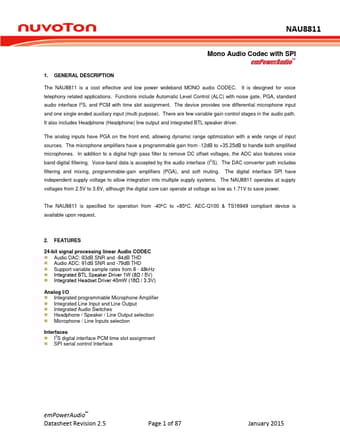

Preview of NAU8811 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NAU8811
Manufacturer
Nuvoton Technology
File Size
1.66 MB
Datasheet
NAU8811_NuvotonTechnology.pdf
Description
Mono Audio Codec
