NAU88C22 24-bit Stereo Audio Codec

NAU88C22 Description

NAU88C22 24-bit Stereo Audio Codec with Speaker Driver .
The NAU88C22 is a low power, high quality CODEC for portable and general purpose audio applications.

NAU88C22 Applications

* In addition to precision 24-bit stereo ADCs and DACs, this device integrates a broad range of additional functions to simplify implementation of complete audio system solutions. The NAU88C22 includes drivers for speaker, headphone, and differential or stereo line outputs, and integrates preamps for

📥 Download Datasheet

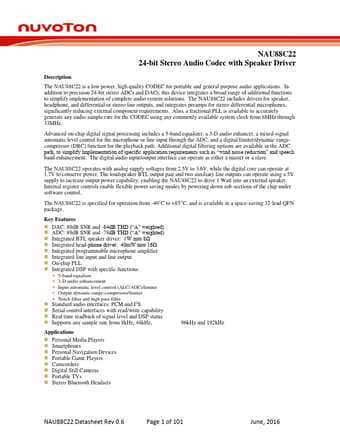

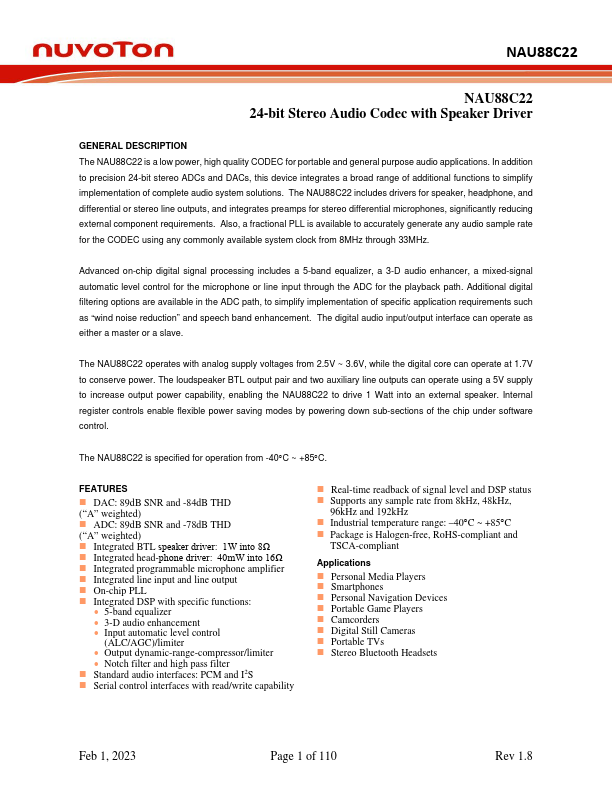

Preview of NAU88C22 PDF

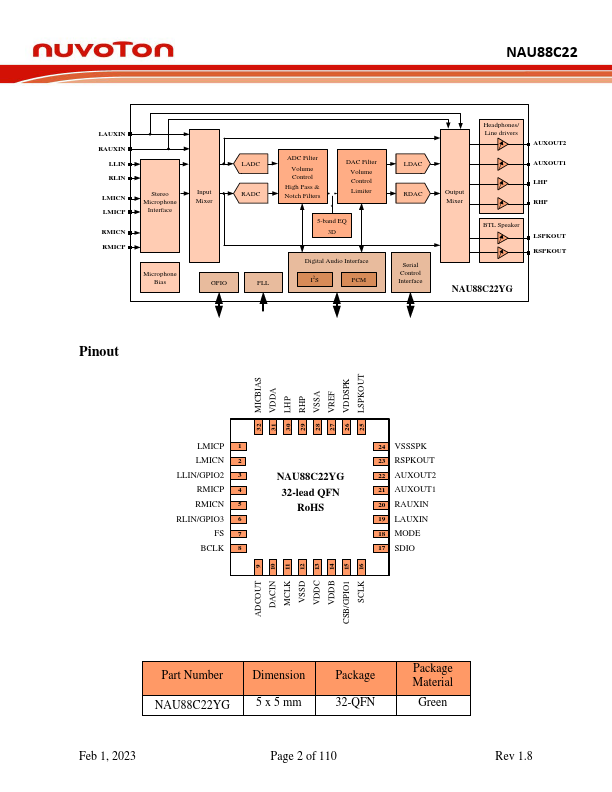

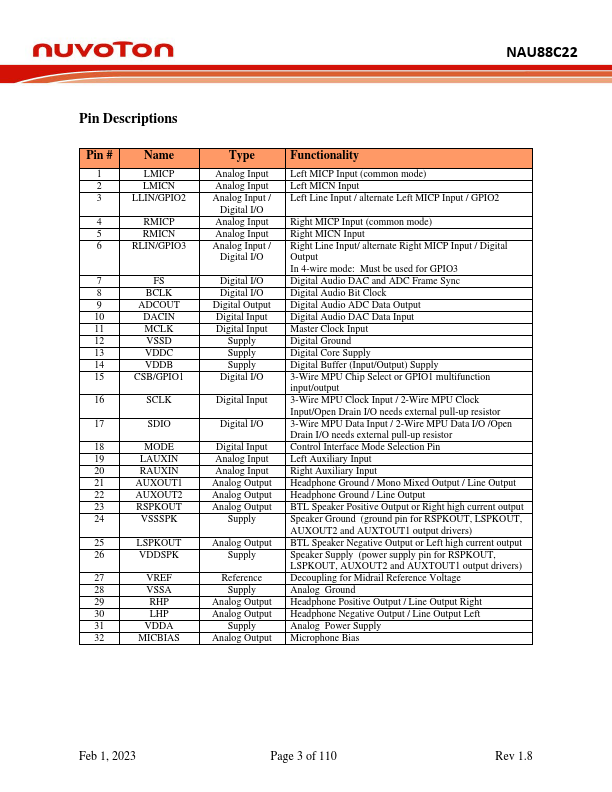

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NAU88C22
Manufacturer
nuvoton
File Size
2.30 MB
Datasheet
NAU88C22-nuvoton.pdf
Description
24-bit Stereo Audio Codec
