NT7704 - 240 Output LCD Segment/Common Driver

Novatek

📥 Download Datasheet

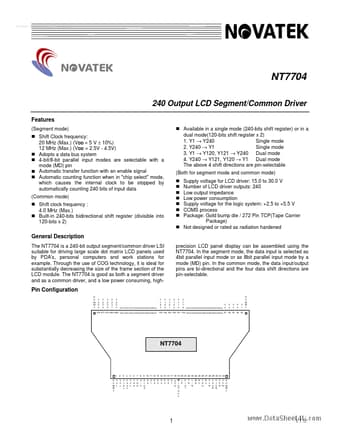

NT7704 Datasheet Preview — Preview of NT7704 PDF

Datasheet Details

Part number: NT7704
Manufacturer: Novatek
File Size: 451.56 KB
Datasheet: NT7704_Novatek.pdf
Description: 240 Output LCD Segment/Common Driver

NT7704 Product details

Description

The NT7704 is a 240-bit output segment/common driver LSI suitable for driving large scale dot matrix LCD panels used by PDA's, personal computers and work stations for example.

Features

(Segment mode) ! Shift Clock frequency: 20 MHz (Max. ) (VDD = 5 V ± 10%) 12 MHz (Max. ) (VDD = 2.5V - 4.5V) ! Adopts a data bus system ! 4-bit/8-bit parallel input modes are selectable with a mode (MD) pin ! Automatic transfer function with an enable signal ! Automatic counting function when in "chip select" mode, which causes the internal clock to be stopped by automatically counting 240 bits of input data (Common mode) ! Shift clock frequency : 4.0 MHz (Max. ) ! Built-in 240-bits bidirectional sh.
