NT7702 - 240 Output LCD Segment/Common Driver

Novatek

📥 Download Datasheet

NT7702 Datasheet Preview — Preview of NT7702 PDF

Datasheet Details

Part number: NT7702
Manufacturer: Novatek
File Size: 322.40 KB
Datasheet: NT7702_Novatek.pdf
Description: 240 Output LCD Segment/Common Driver

NT7702 Product details

Description

The NT7702 is a 240-bit output segment/common driver LSI suitable for driving large scale dot matrix LCD panels using as PDA/personal computers/work stations.

Features

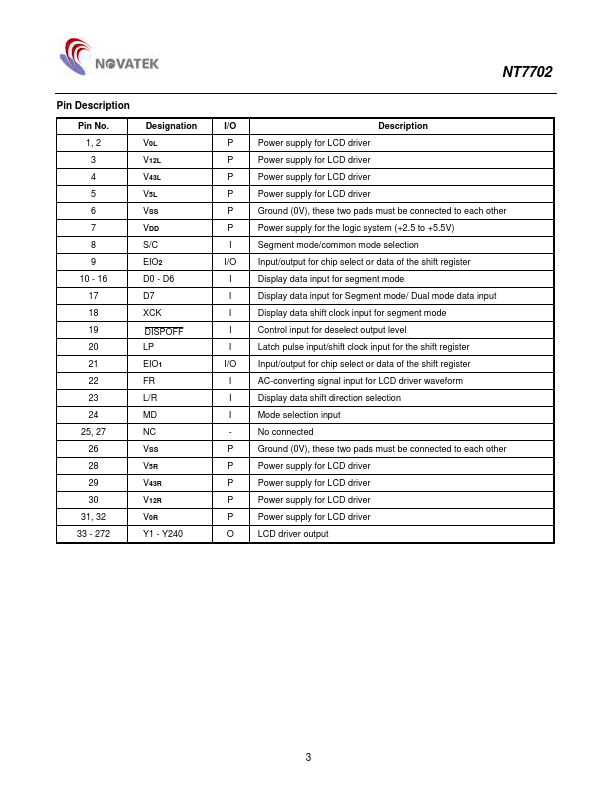

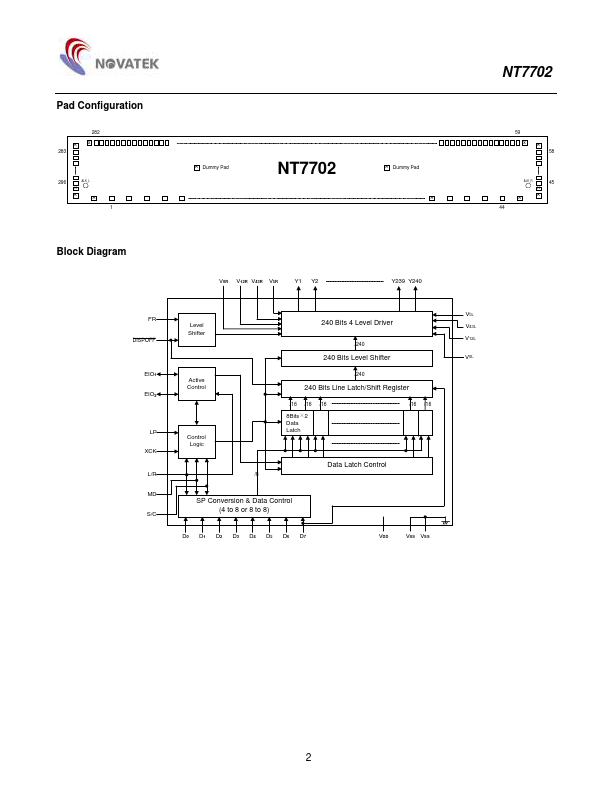

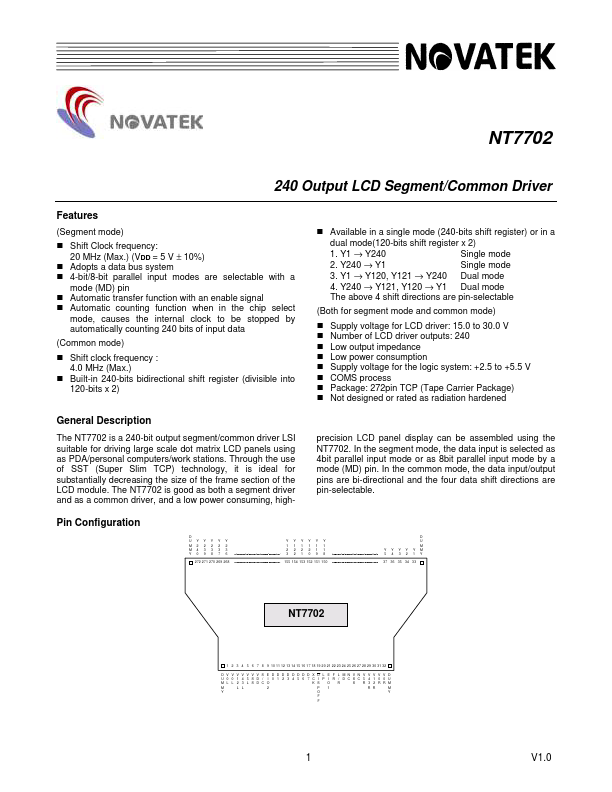

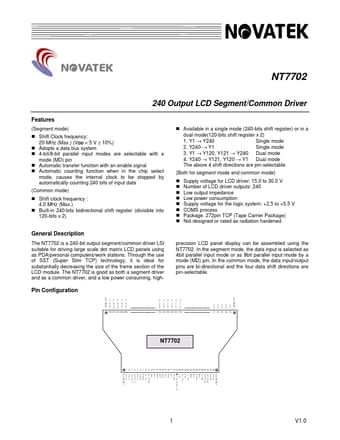

(Segment mode) ! Shift Clock frequency: 20 MHz (Max. ) (VDD = 5 V ± 10%) ! Adopts a data bus system ! 4-bit/8-bit parallel input modes are selectable with a mode (MD) pin ! Automatic transfer function with an enable signal ! Automatic counting function when in the chip select mode, causes the internal clock to be stopped by automatically counting 240 bits of input data (Common mode) ! Shift clock frequency : 4.0 MHz (Max. ) ! Built-in 240-bits bidirectional shift register (divisible into 120-bits.
