NT7703 - 160 Output LCD Segment/Common Driver

Novatek

📥 Download Datasheet

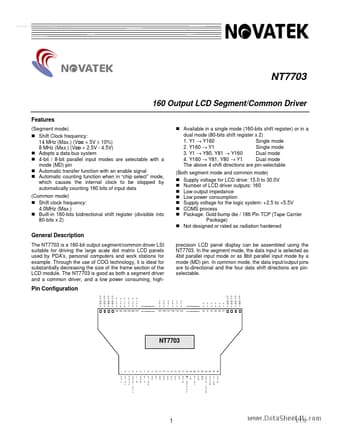

NT7703 Datasheet Preview — Preview of NT7703 PDF

Datasheet Details

Part number: NT7703
Manufacturer: Novatek
File Size: 508.27 KB
Datasheet: NT7703_Novatek.pdf
Description: 160 Output LCD Segment/Common Driver

NT7703 Product details

Description

The NT7703 is a 160-bit output segment/common driver LSI suitable for driving the large scale dot matrix LCD panels used by PDA's, personal computers and work stations for example.

Features

(Segment mode) ! Shift Clock frequency: 14 MHz (Max. ) (VDD = 5V ± 10%) 8 MHz (Max. ) (VDD = 2.5V - 4.5V) ! Adopts a data bus system ! 4-bit / 8-bit parallel input modes are selectable with a mode (MD) pin ! Automatic transfer function with an enable signal ! Automatic counting function when in “chip select” mode, which causes the internal clock to be stopped by automatically counting 160 bits of input data (Common mode) ! Shift clock frequency: 4.0MHz (Max. ) ! Built-in 160-bits bidirectional shif.
