R1200L, R1200Z STEP-UP DC/DC CONVERTER

Nisshinbo

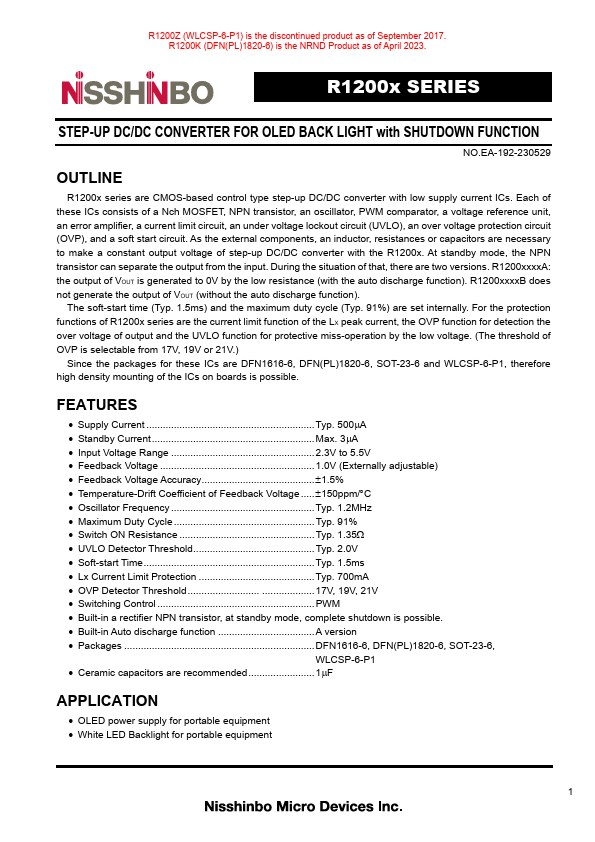

Description

R1200Z (WLCSP-6-P1) is the discontinued product as of September 2017.R1200K (DFN(PL)1820-6) is the NRND Product as of April 2023.R1200x SERIES STEP-.
WLCSP-6-P1 Top View 6 5 4 Bottom View 4 5 6 R1200x NO.

📥 Download Datasheet

R1200L Datasheet Preview — This datasheet PDF includes multiple part numbers: R1200L, R1200Z. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: R1200L, R1200Z
Manufacturer: Nisshinbo
File Size: 1.17 MB
Datasheet: R1200Z-Nisshinbo.pdf
Description: STEP-UP DC/DC CONVERTER
Note: This datasheet PDF includes multiple part numbers: R1200L, R1200Z.
Please refer to the document for exact specifications by model.

Features

* Supply Current Typ. 500µA
* Standby Current Max. 3µA
* Input Voltage Range 2.3V to 5.5V
* Feedback Voltage 1.0V (Externally adjustable)
* Feedback Voltage Accuracy ±1.5%
* Temperature-Drift Coefficient of Feedback Voltage ±150ppm/°C
* Osc
