R1202N, R1202L STEP-UP DC/DC CONVERTER

R1202N Description

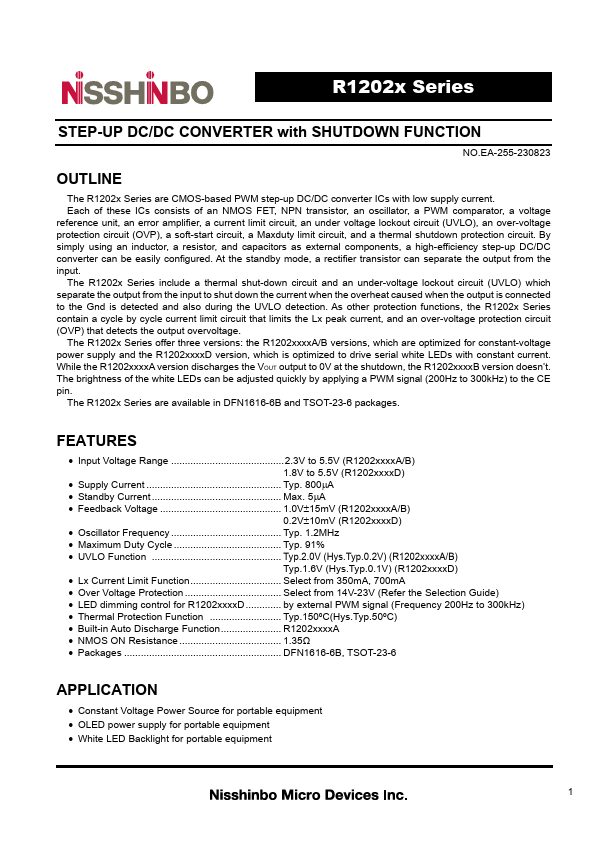

R1202x Series STEP-UP DC/DC CONVERTER with SHUTDOWN FUNCTION NO.EA-255-230823 OUTLINE The R1202x Series are CMOS-based PWM step-up DC/DC converter ICs.
DFN1616-6B Top View Bottom View 6 5 4 4 5 6 ∗ R1202x NO. TSOT-23-6 6 5 4 (mark side) 1 2 3 3.

R1202N Features

* Input Voltage Range 2.3V to 5.5V (R1202xxxxA/B) 1.8V to 5.5V (R1202xxxxD)
* Supply Current Typ. 800µA
* Standby Current Max. 5µA
* Feedback Voltage 1.0V±15mV (R1202xxxxA/B) 0.2V±10mV (R1202xxxxD)
* Oscillator Frequency Typ. 1.2MHz
* Maximum Duty

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: R1202N, R1202L. Please refer to the document for exact specifications by model.

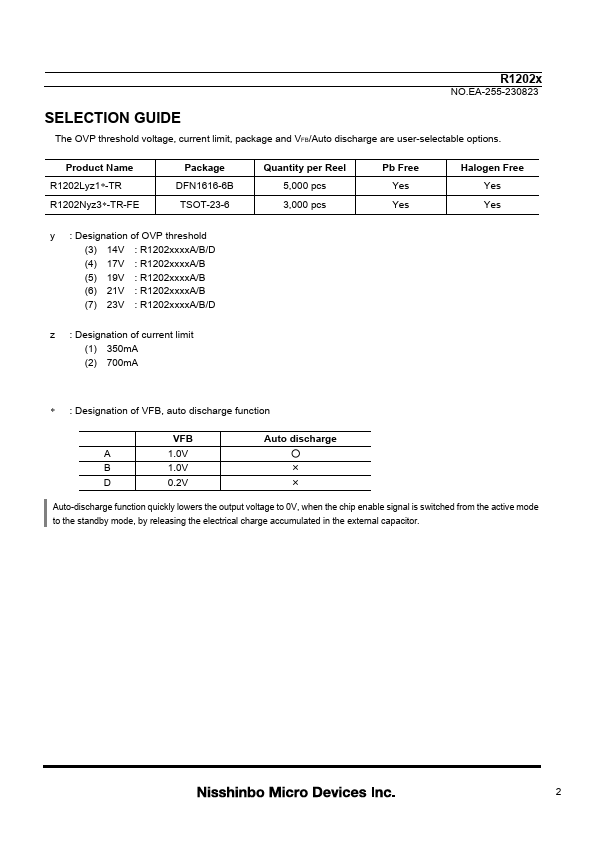

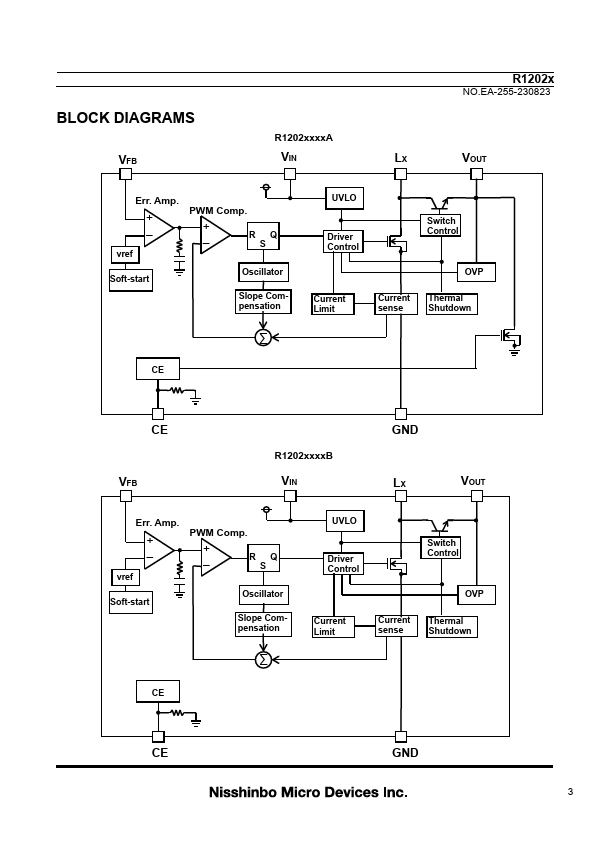

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
R1202N, R1202L
Manufacturer
Nisshinbo
File Size
1.46 MB
Datasheet
R1202L-Nisshinbo.pdf
Description
STEP-UP DC/DC CONVERTER
Note
This datasheet PDF includes multiple part numbers: R1202N, R1202L.
Please refer to the document for exact specifications by model.
