R1203N, R1203L STEP-UP DC/DC CONVERTER

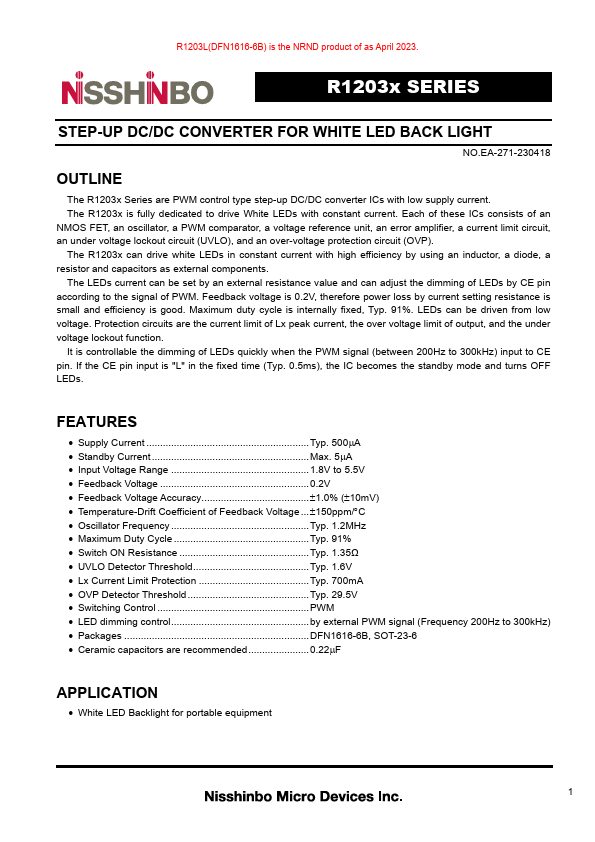

R1203N Description

R1203L(DFN1616-6B) is the NRND product of as April 2023.R1203x SERIES STEP-UP DC/DC CONVERTER FOR WHITE LED BACK LIGHT NO.EA-271-230418 OUTLINE The R.
R1203x NO. DFN1616-6B Top View Bottom View 654 456 ∗. SOT-23-6 6 5 4 (mark side) 123 321 1 2 3.

R1203N Features

* Supply Current Typ. 500µA
* Standby Current Max. 5µA
* Input Voltage Range 1.8V to 5.5V
* Feedback Voltage 0.2V
* Feedback Voltage Accuracy ±1.0% (±10mV)
* Temperature-Drift Coefficient of Feedback Voltage ±150ppm/°C
* Oscillator Frequenc

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: R1203N, R1203L. Please refer to the document for exact specifications by model.

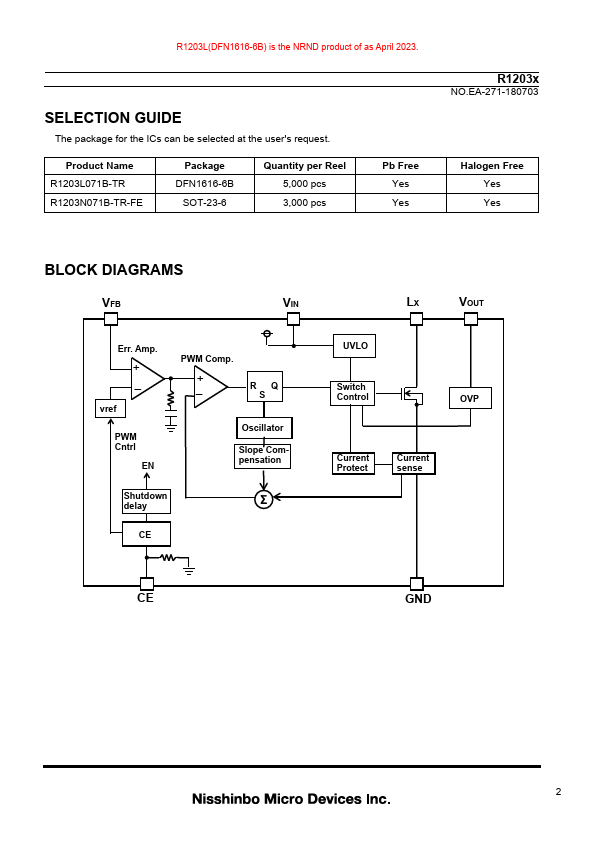

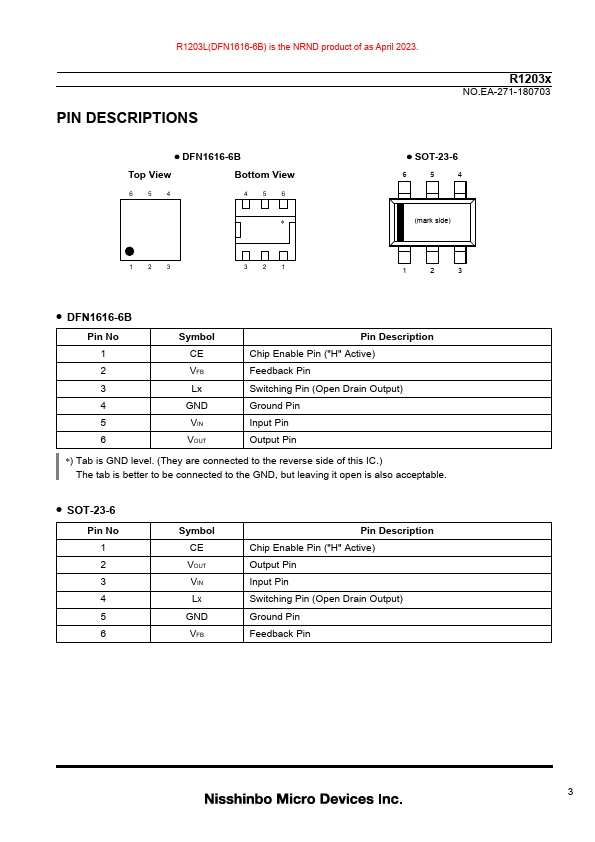

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
R1203N, R1203L
Manufacturer
Nisshinbo
File Size
1.17 MB
Datasheet
R1203L-Nisshinbo.pdf
Description
STEP-UP DC/DC CONVERTER
Note
This datasheet PDF includes multiple part numbers: R1203N, R1203L.
Please refer to the document for exact specifications by model.
