R1130H001C - 300mA LDO REGULATOR

Nisshinbo

R1130H001C Datasheet Preview — Preview of R1130H001C PDF

Datasheet Details

Part number	R1130H001C
Manufacturer	Nisshinbo
File Size	1.20 MB
Description	300mA LDO REGULATOR
Datasheet	R1130H001C-Nisshinbo.pdf

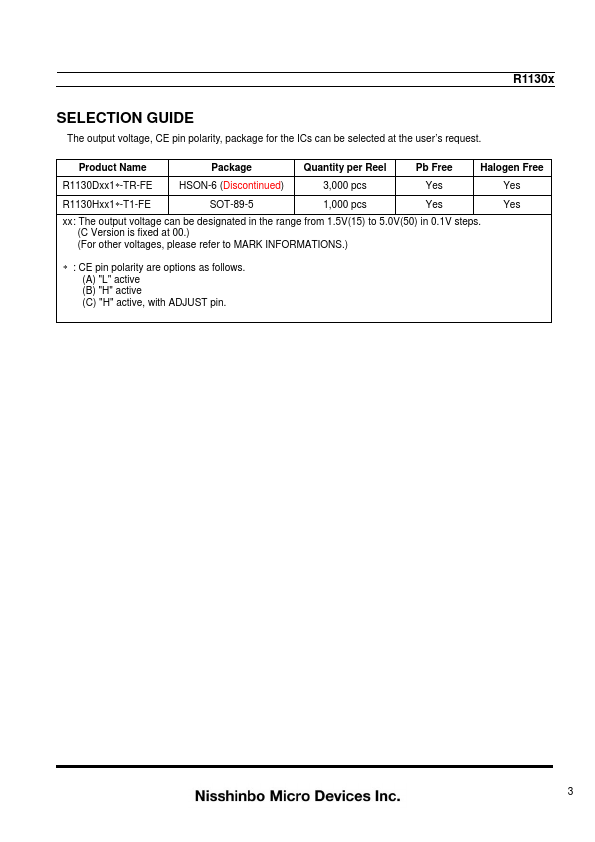

R1130H001C Product details

Description

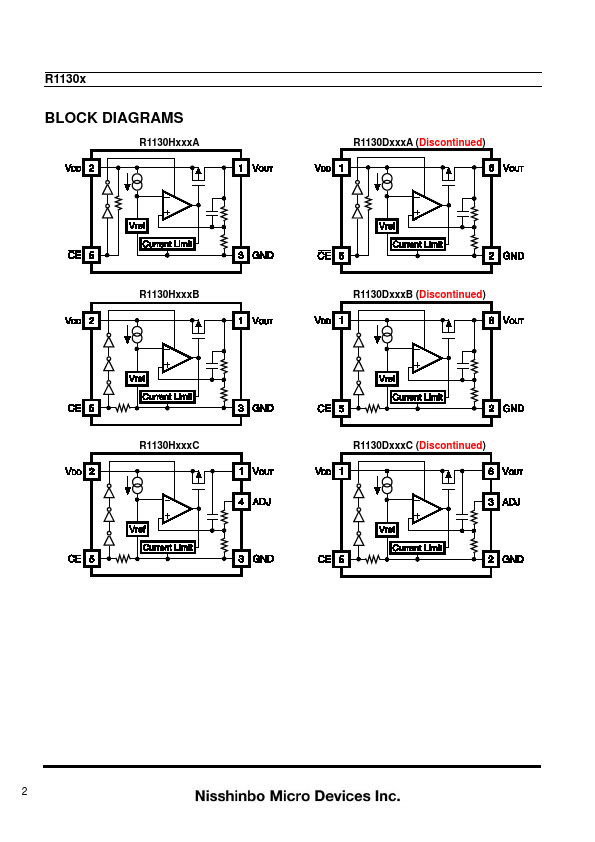

SOT-89-5 Pin No.1 2 3 Symbol VOUT VDD GND NC (A/B type) 4 ADJ (C type) 5 CE (A type)or CE(B/D type) Description Voltage Regulator Output Pin Input Pin Ground Pin No Connection Adjustable Regulator feedback Input Pin (Connect to resistor voltage divider.) Chip Enable Pin HSON-6 (Discontinued) Pin No.1 2 3 4 Symbol VDD GND NC (A/B type) ADJ (C type) NC Description Input Pin Ground Pin No Connection Adjustable Regulator feedback Input Pin (Connect to resistor voltag

Features

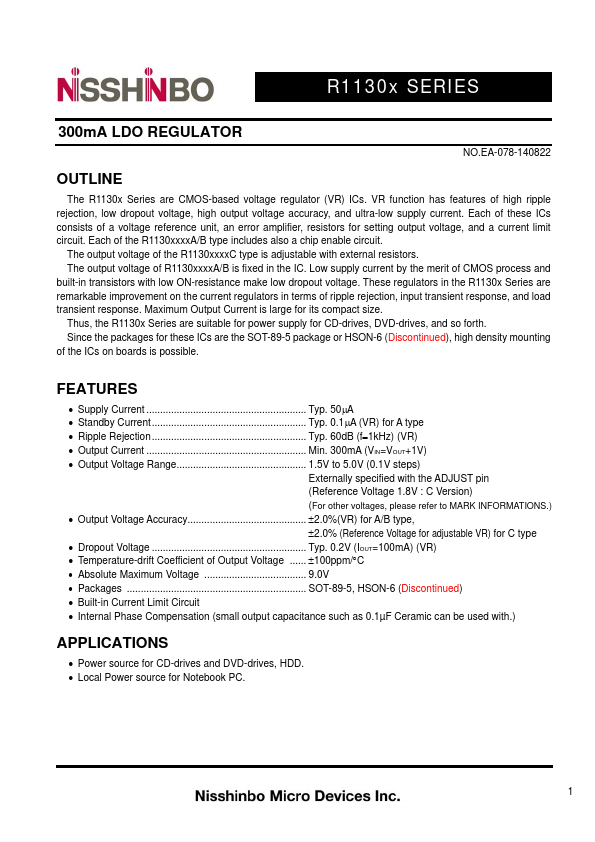

of high ripple rejection, low dropout voltage, high output voltage accuracy, and ultra-low supply current. Each of these ICs consists of a voltage reference unit, an error amplifier, resistors for setting output voltage, and a current limit circuit. Each of the R1130xxxxA/B type includes also a chip enable circuit. The output voltage of the R1130xxxxC type is adjustable with external resistors. The output voltage of R1130xxxxA/B is fixed in the IC. Low supply current by the merit of CMOS process.
