R1141Q 120mA LDO REGULATOR

R1141Q Description

R1141Q SERIES 120mA LDO REGULATOR NO.EA-082-111027 OUTLINE The R1141Q Series consist of CMOS-based voltage regulator ICs with high output voltage a.
Pin No 1 2 3 4 Symbol VOUT GND CE VDD Pin Description Output Pin Ground Pin Chip Enable Pin ("H" Active) Input Pin ABSOLUTE MAXIMUM RATINGS Symbo.

R1141Q Features

* Supply Current Typ. 90μA
* Standby Mode Typ. 0.1μA
* Dropout Voltage Typ. 0.15V (IOUT=100mA, Output Voltage=3.0V Type)
* Ripple Rejection Typ. 75dB (VOUT = 2.5V) (f=1kHz)
* Temperature-Drift Coefficient of Output Voltage Typ. ±1

R1141Q Applications

* Power source for cellular phones such as GSM, CDMA and various kinds of PCS.
* Power source for electrical appliances such as cameras, VCRs and camcorders, and hand-held communication equipment.
* Power source for battery-powered equipment.
* Very stable Voltage Ref

📥 Download Datasheet

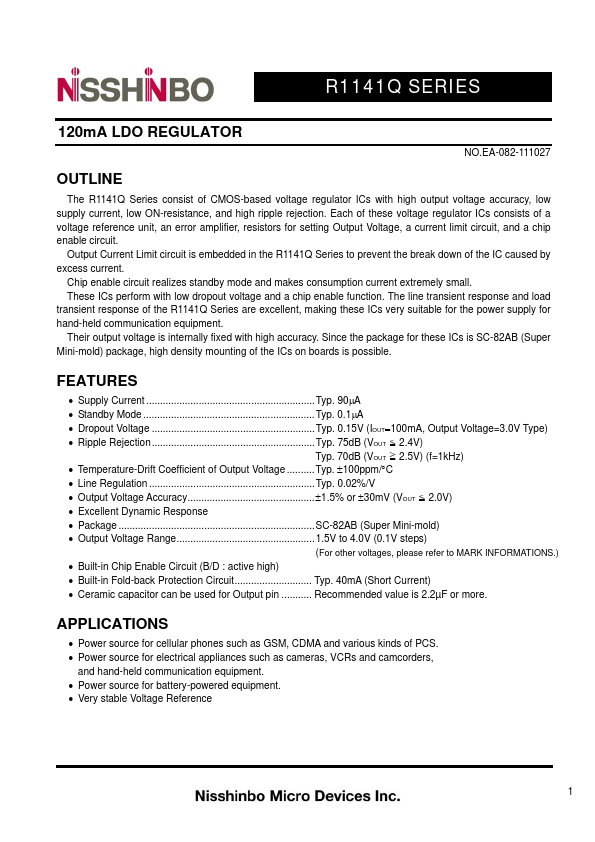

Preview of R1141Q PDF

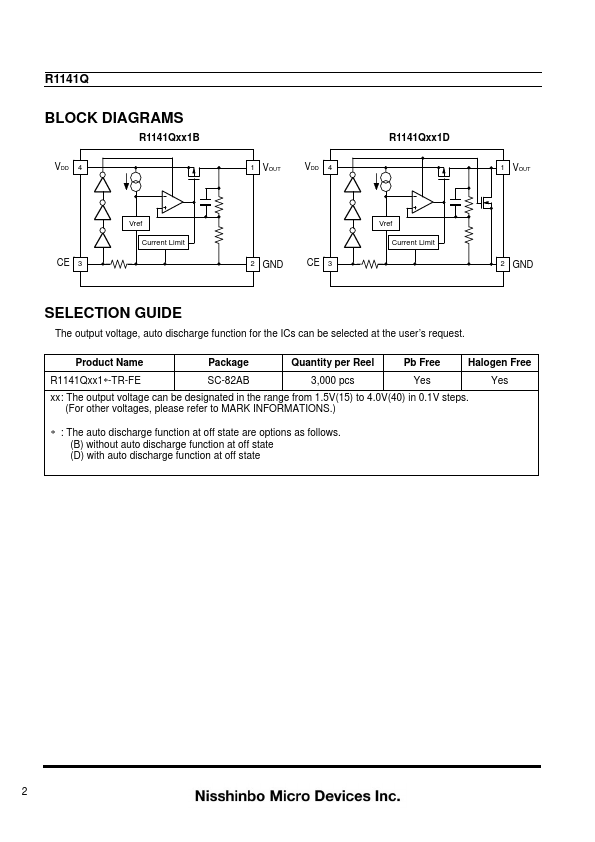

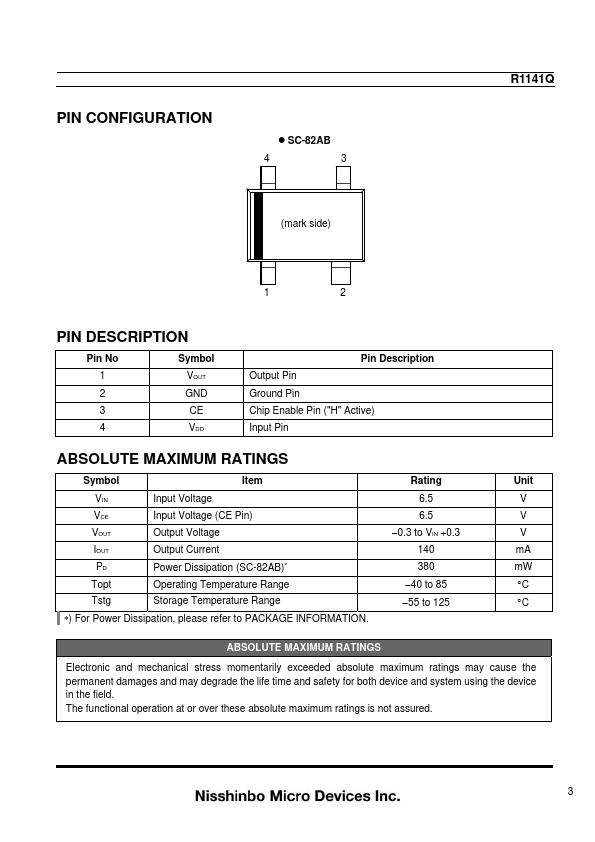

datasheet Preview Page 2 datasheet Preview Page 3
