R1114N, R1114D - LOW NOISE 150mA LDO REGULATOR

R1114N Description

R1114x SERIES LOW NOISE 150mA LDO REGULATOR NO.EA-094-111026 OUTLINE The R1114x Series are CMOS-based voltage regulator ICs with high output voltag.
R1114D Pin No. R1114Q Pin No.

R1114N Features

* Supply Current Typ. 75μA
* Standby Mode Typ. 0.1μA
* Dropout Voltage Typ. 0.22V (IOUT=150mA 3.0V Output type)
* Ripple Rejection Typ. 70dB (f=1kHz 3.0V Output type) Typ. 60dB (f=10kHz)
* Temperature-Drift Coefficient of Output Voltage Typ. ±100ppm/°C

R1114N Applications

* Power source for portable communication equipment.
* Power source for electrical appliances such as cameras, VCRs and camcorders.

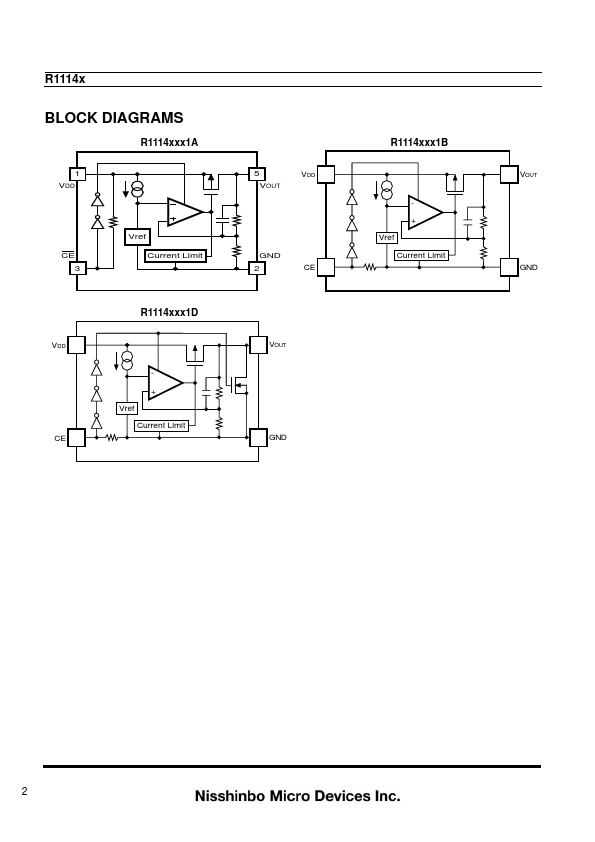

* Power source for battery-powered equipment. 1 R1114x BLOCK DIAGRAMS R1114xxx1A R1114xxx1B 1 VDD CE 3 Vref Current Limit 5 VOUT VDD GN

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: R1114N, R1114D. Please refer to the document for exact specifications by model.

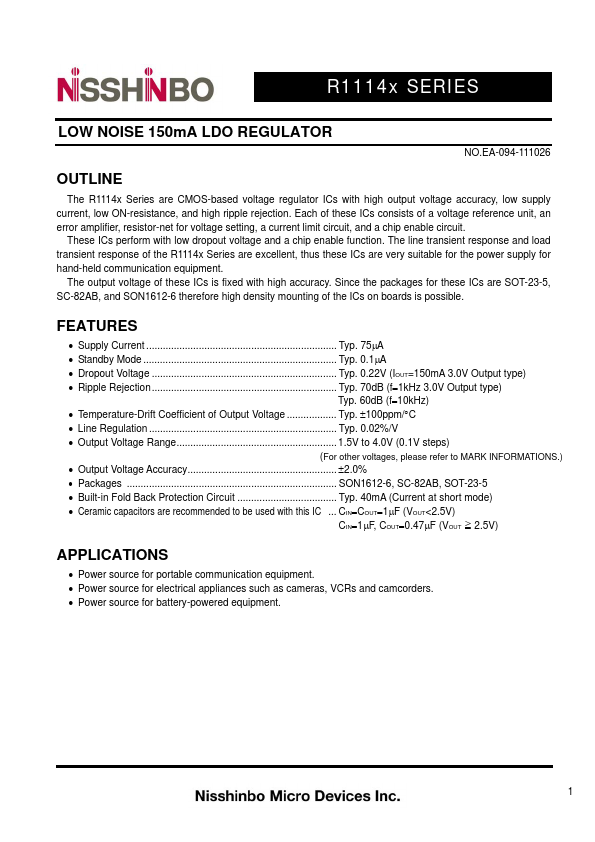

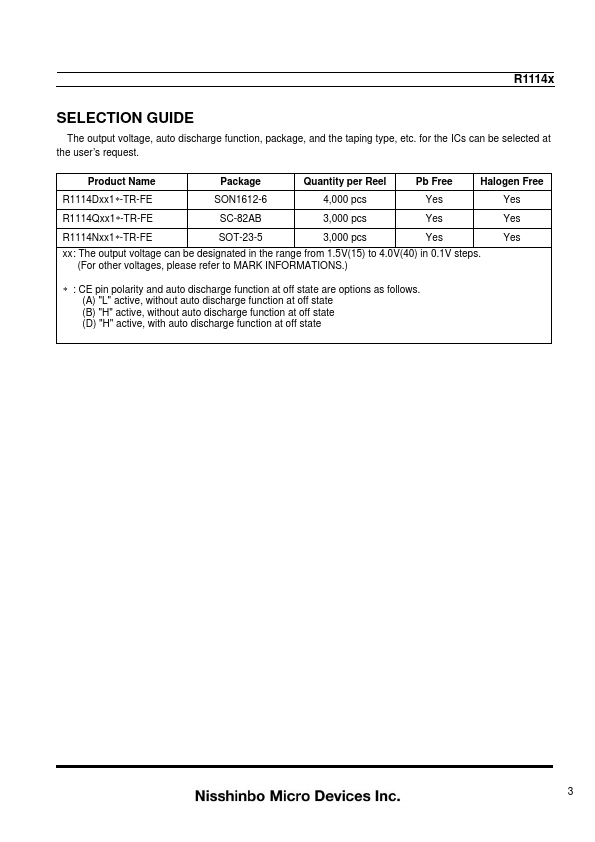

datasheet Preview Page 2 datasheet Preview Page 3
