MUSES8920A - Dual Operational Amplifier

Product Overview

Nisshinbo

Datasheet Details

Part number	MUSES8920A
Manufacturer	Nisshinbo
File Size	927.94 KB
Description	Dual Operational Amplifier
Datasheet	MUSES8920A Datasheet

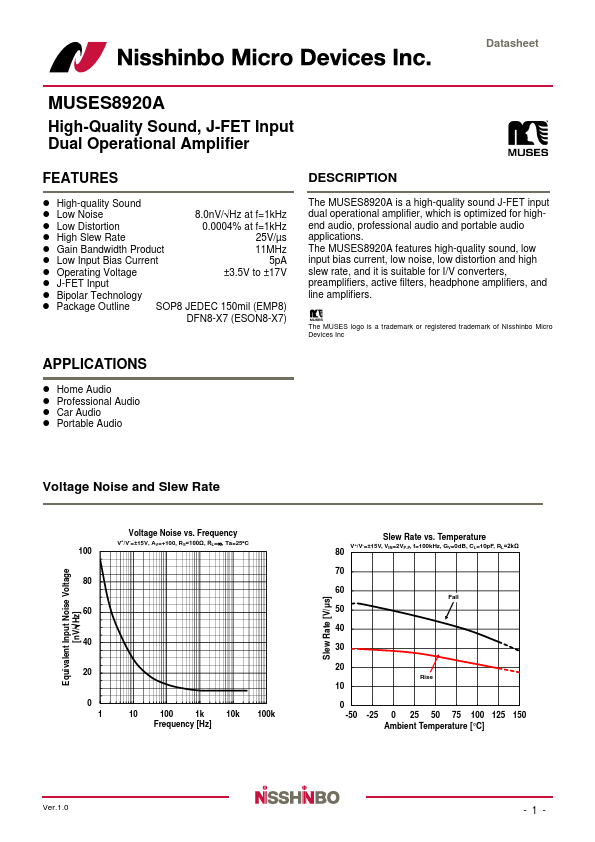

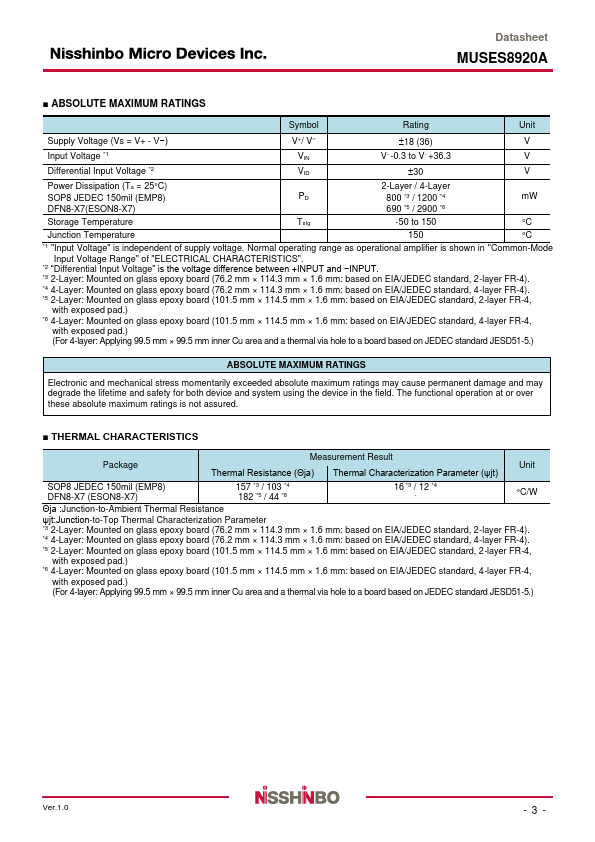

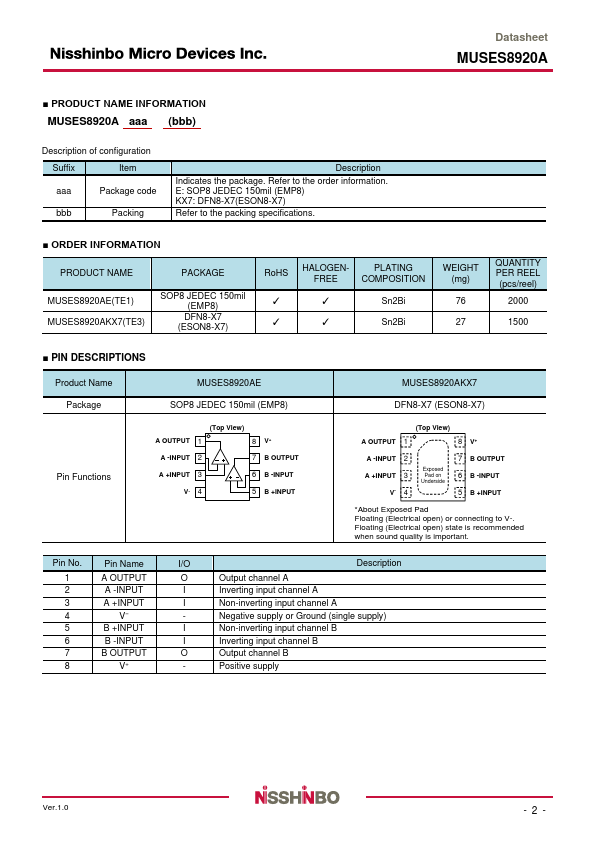

Additional preview pages of the MUSES8920A datasheet.

Product details

Description

The MUSES8920A is a high-quality sound J-FET input dual operational amplifier, which is optimized for highend audio, professional audio and portable audio applications.

Features

High-quality Sound.
Low Noise 8.0nV/√Hz at f=1kHz.
Low Distortion 0.0004% at f=1kHz.
High Slew Rate 25V/µs.
Gain Bandwidth Product 11MHz.
Low Input Bias Current 5pA.
Operating Voltage ±3.5V to ±17V.
J-FET Input.
Bipolar Technology.
Package Outline SOP8 JEDEC 150mil (EMP8) DFN8-X7 (ESON8-X7).
