MUSES01 - Dual Operational Amplifier

New Japan Radio

MUSES01 Description

MUSES01 www.DataSheet4U.com High Quality Audio , J-FET Input, Dual Operational Amplifier The MUSES01 is a dual J-FET input high quality audio operat.

MUSES01 Features

* Operating Voltage
* Output noise
* Input Offset Voltage
* Input Bias Current
* Voltage Gain
* Slew Rate
* Bipolar Technology
* Package Outline Vopr=±9V to ±16V 9.5nV/ √ Hz at f=1kHz 0.8mV typ. 5mV max. 200pA typ. 800pA max. at Ta=25°C 105dB typ. 12V/μs typ. DIP8 PIN CON

📥 Download Datasheet

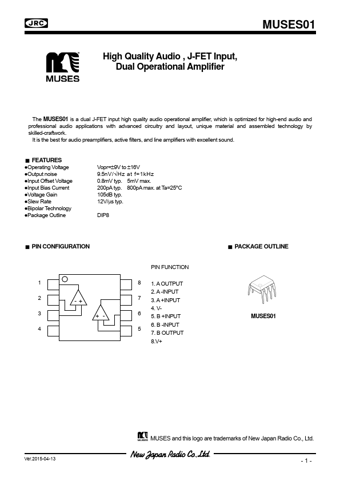

MUSES01 Datasheet Preview — Preview of MUSES01 PDF

Datasheet Details

Part number: MUSES01
Manufacturer: New Japan Radio
File Size: 465.42 KB
Datasheet: MUSES01_NewJapanRadio.pdf
Description: Dual Operational Amplifier
