MUSES8832 - Dual Operational Amplifier

General Description

amplifier, which is optimized for high-end audio and portable audio applications.

Key Features

  • Operating Voltage.
  • Low Noise.
  • Output Current.
  • GBW.
  • Low Distortion.
  • Slew Rate.
  • Bipolar Technology.
  • Package Outline.
  • Operating Temperature Range +2.7V to +14V ±1.35V to ±7.0V 2.1nV/√Hz typ. at f=1kHz 0.3μVrms typ. (20Hz to 20kHz) 32mA typ. (Capability of driving 600Ω loads) 10MHz typ. 0.0009% typ. at V+=+5V, Vo=1.3Vrms 1V/µs typ. SOP8 JEDEC 150 mil, SSOP8-A3 -40 to +125°C.
  • PIN.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MUSES8920A Dual Operational Amplifier Nisshinbo
MUSES05 Single Operational Amplifier Nisshinbo
MUSES100 600mA 5.5V Low Noise LDO Regulator Nisshinbo
MUSB-05-F-xxxx-A STANDARD & RUGGED MINI USB INTERFACES SamTec
MUSB-05-S-xxxx-A STANDARD & RUGGED MINI USB INTERFACES SamTec

Other Datasheets by New Japan Radio

Part Number Description
MUSES8820 High Quality Audio Dual Operational Amplifier
MUSES8920 Dual Operational Amplifier
MUSES01 Dual Operational Amplifier
MUSES02 Dual Operational Amplifier
MUSES03 Single Operational Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

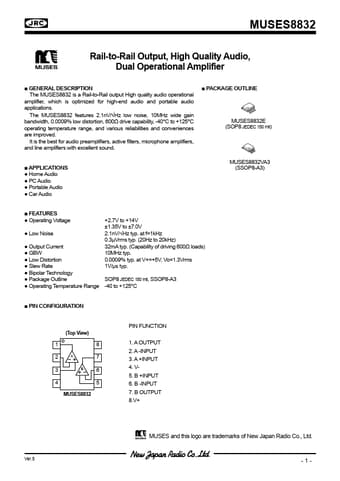

MUSES8832 Rail-to-Rail Output, High Quality Audio, Dual Operational Amplifier ■ GENERAL DESCRIPTION The MUSES8832 is a Rail-to-Rail output High quality audio operational amplifier, which is optimized for high-end audio and portable audio applications. The MUSES8832 features 2.1nV/Hz low noise, 10MHz wide gain bandwidth, 0.0009% low distortion, 600Ω drive capability, -40°C to +125°C operating temperature range, and various reliabilities and conveniences are improved. It is the best for audio preamplifiers, active filters, microphone amplifiers, and line amplifiers with excellent sound.
