LM9830 - LM9830 36-Bit Color Document Scanner

National Semiconductor

The LM9830 by National Semiconductor is a LM9830 36-Bit Color Document Scanner. Below is the official datasheet preview.

📥 Download Datasheet

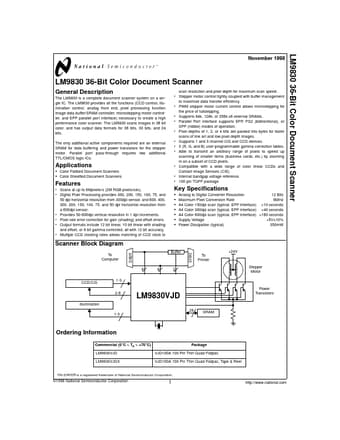

LM9830 LM9830 36-Bit Color Document Scanner by National Semiconductor - Datasheet Preview — Official preview page of the **LM9830** LM9830 36-Bit Color Document Scanner datasheet (National Semiconductor).

Datasheet Details

Part number	LM9830
Manufacturer	National Semiconductor
File Size	566.52 KB
Description	LM9830 36-Bit Color Document Scanner
Datasheet	LM9830_NationalSemiconductor.pdf
Additional preview pages of the LM9830 datasheet.

LM9830 Product details

Description

LM9830 36-Bit Color Document Scanner The LM9830 is a complete document scanner system on a single IC.The LM9830 provides all the functions (CCD control, illumination control, analog front end, pixel processing function image data buffer/SRAM controller, microstepping motor controller, and EPP parallel port interface) necessary to create a high performance color scanner.The LM9830 scans images in 36 bit color, and has output data formats for 36 bits, 30 bits, and 24 bits.The only additional a

Features

Scans at up to 6Mpixels/s (2M RGB pixels/sec).
Digital Pixel Processing provides 300, 200, 150, 100, 75, and 50 dpi horizontal resolution from 300dpi sensor, and 600, 400, 300, 200, 150, 100, 75, and 50 dpi horizontal resolution from a 600dpi sensor.
Provides 50-600dpi vertical resolution in 1 dpi increments.
Pixel rate error correction for gain (shading) and offset errors.
Output formats include 12 bit linear, 10 bit linear with shading and offs.
