DS26F32M - Quad Differential Line Receivers

Name: DS26F32M
SKU: DS26F32M-216161

National Semiconductor

📥 Download Datasheet

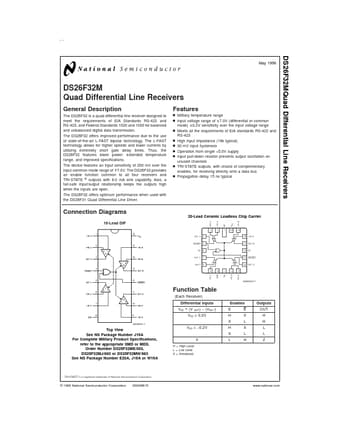

DS26F32M Datasheet Preview — Preview of DS26F32M PDF

Datasheet Details

Part number	DS26F32M
Manufacturer	National Semiconductor
File Size	207.42 KB
Description	Quad Differential Line Receivers
Datasheet	DS26F32M_NationalSemiconductor.pdf

DS26F32M Product details

Description

The DS26F32 is a quad differential line receiver designed to meet the requirements of EIA Standards RS-422 and RS-423, and Federal Standards 1020 and 1030 for balanced and unbalanced digital data transmission.

Features

lower power, extended temperature range, and improved specifications. The device features an input sensitivity of 200 mV over the input common mode range of ± 7.0V. The DS26F32 provides an enable function common to all four receivers and TRI-STATE ® outputs with 8.0 mA sink capability. Also, a fail-safe input/output relationship keeps the outputs high when the inputs are open. The DS26F32 offers optimum performance when used with the DS26F31 Quad Differential Line Driver. Features n Military te.
