DS26101 - 8-Port TDM-to-ATM PHY

Maxim Integrated Products

📥 Download Datasheet

DS26101 Datasheet Preview — Preview of DS26101 PDF

Datasheet Details

Part number	DS26101
Manufacturer	Maxim Integrated Products
File Size	574.07 KB
Description	8-Port TDM-to-ATM PHY
Datasheet	DS26101_MaximIntegratedProducts.pdf

DS26101 Product details

Description

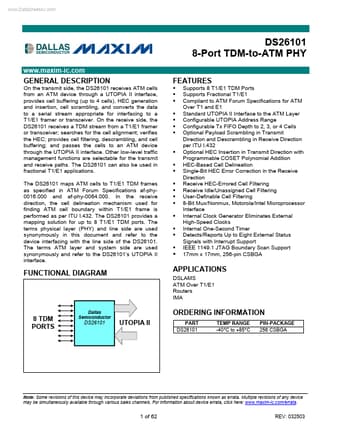

On the transmit side, the DS26101 receives ATM cells from an ATM device through a UTOPIA II interface, provides cell buffering (up to 4 cells), HEC generation and insertion, cell scrambling, and converts the data to a serial stream appropriate for interfacing to a T1/E1 framer or transceiver.

Features

Supports 8 T1/E1 TDM Ports Supports Fractional T1/E1 Compliant to ATM Forum Specifications for ATM Over T1 and E1 Standard UTOPIA II Interface to the ATM Layer Configurable UTOPIA Address Range Configurable Tx FIFO Depth to 2, 3, or 4 Cells Optional Payload Scrambling in Transmit Direction and Descrambling in Receive Direction per ITU I.432 Optional HEC Insertion in Transmit Direction with.
