DS26C32AM, DS26C32AT - Quad Differential Line Receiver

National Semiconductor

📥 Download Datasheet

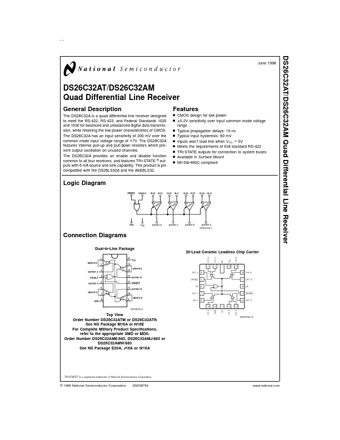

DS26C32AM Datasheet Preview — This datasheet PDF includes multiple part numbers: DS26C32AM, DS26C32AT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	DS26C32AM, DS26C32AT
Manufacturer	National Semiconductor
File Size	311.31 KB
Description	Quad Differential Line Receiver
Datasheet	DS26C32AT_NationalSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: DS26C32AM, DS26C32AT. Please refer to the document for exact specifications by model.

DS26C32AM Product details

Description

The DS26C32A is a quad differential line receiver designed to meet the RS-422, RS-423, and Federal Standards 1020 and 1030 for balanced and unbalanced digital data transmission, while retaining the low power characteristics of CMOS.

Features

internal pull-up and pull-down resistors which prevent output oscillation on unused channels. The DS26C32A provides an enable and disable function common to all four receivers, and features TRI-STATE ® outputs with 6 mA source and sink capability. This product is pin compatible with the DS26LS32A and the AM26LS32. Features n CMOS design for low power n ±0.2V sensitivity over input common mode voltage range n Typical propagation delays: 19 ns n Typical input hysteresis: 60 mV n Inputs won’t load.
