DP8392C - CTI Coaxial Transceiver Interface

National Semiconductor

The DP8392C by National Semiconductor is a CTI Coaxial Transceiver Interface. Below is the official datasheet preview.

📥 Download Datasheet

DP8392C CTI Coaxial Transceiver Interface by National Semiconductor - Datasheet Preview — Official preview page of the **DP8392C** CTI Coaxial Transceiver Interface datasheet (National Semiconductor).

Datasheet Details

Part number	DP8392C
Manufacturer	National Semiconductor
File Size	250.74 KB
Description	CTI Coaxial Transceiver Interface
Datasheet	DP8392C_NationalSemiconductor.pdf

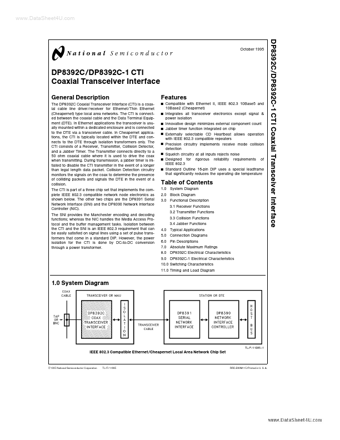

Additional preview pages of the DP8392C datasheet.

DP8392C Product details

Description

The DP8392C Coaxial Transceiver Interface (CTI) is a coaxial cable line driver receiver for Ethernet Thin Ethernet (Cheapernet) type local area networks The CTI is connected between the coaxial cable and the Data Terminal Equipment (DTE) In Ethernet applications the transceiver is usually mounted within a dedicated enclosure and is connected to the DTE via a transceiver cable In Cheapernet applications the CTI is typically located within the DTE and connects to the DTE through isolation transfor

Features

Y Y Y Y Y Y Y Y Y Compatible with Ethernet II IEEE 802 3 10Base5 and 10Base2 (Cheapernet) Integrates all transceiver electronics except signal power isolation Innovative design minimizes external component count Jabber timer function integrated on chip Externally selectable CD Heartbeat allows operation with IEEE 802 3 compatible repeaters Precision circuitry implements receive mode collision detection Squelch circuitry at all inputs rejects noise Designed for rigorous reliability requireme.
