DP8392 - Coaxial Transceiver Interface

National Semiconductor

The DP8392 by National Semiconductor is a Coaxial Transceiver Interface. Below is the official datasheet preview.

📥 Download Datasheet

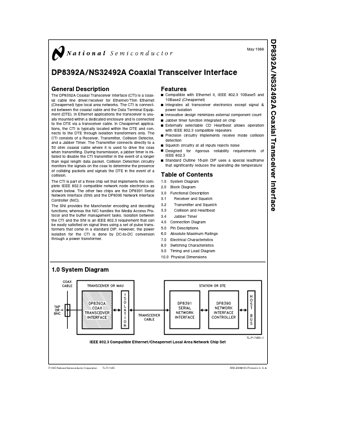

DP8392 Coaxial Transceiver Interface by National Semiconductor - Datasheet Preview — Official preview page of the **DP8392** Coaxial Transceiver Interface datasheet (National Semiconductor).

Datasheet Details

Part number	DP8392
Manufacturer	National Semiconductor
File Size	172.87 KB
Description	Coaxial Transceiver Interface
Datasheet	DP8392_NationalSemiconductor.pdf
Additional preview pages of the DP8392 datasheet.

DP8392 Product details

Description

The DP8392A Coaxial Transceiver Interface (CTI) is a coaxial cable line driver receiver for Ethernet Thin Ethernet (Cheapernet) type local area networks The CTI is connected between the coaxial cable and the Data Terminal Equipment (DTE) In Ethernet applications the transceiver is usually mounted within a dedicated enclosure and is connected to the DTE via a transceiver cable In Cheapernet applications the CTI is typically located within the DTE and connects to the DTE through isolation transfor

Features

Y Y Y Y Y Y Y Y Y Compatible with Ethernet II IEEE 802 3 10Base5 and 10Base2 (Cheapernet) Integrates all transceiver electronics except signal power isolation Innovative design minimizes external component count Jabber timer function integrated on chip Externally selectable CD Heartbeat allows operation with IEEE 802 3 compatible repeaters Precision circuitry implements receive mode collision detection Squelch circuitry at all inputs rejects noise Designed for rigorous reliability requireme.
