DP83902A - ST-NICTM Serial Network Interface Controller for Twisted Pair

National Semiconductor

The DP83902A by National Semiconductor is a ST-NICTM Serial Network Interface Controller for Twisted Pair. Below is the official datasheet preview.

📥 Download Datasheet

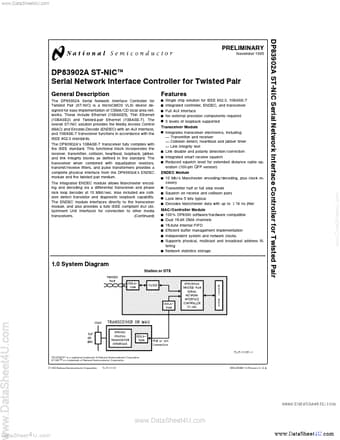

DP83902A ST-NICTM Serial Network Interface Controller for Twisted Pair by National Semiconductor - Datasheet Preview — Official preview page of the **DP83902A** ST-NICTM Serial Network Interface Controller for Twisted Pair datasheet (National Semiconductor).

Datasheet Details

Part number	DP83902A
Manufacturer	National Semiconductor
File Size	1.27 MB
Description	ST-NICTM Serial Network Interface Controller for Twisted Pair
Datasheet	DP83902A_NationalSemiconductor.pdf
Additional preview pages of the DP83902A datasheet.

DP83902A Product details

Description

The DP83902A Serial Network Interface Controller for Twisted Pair (ST-NIC) is a microCMOS VLSI device designed for easy implementation of CSMA CD local area networks These include Ethernet (10BASE5) Thin Ethernet (10BASE2) and Twisted-pair Ethernet (10BASE-T) The overall ST-NIC solution provides the Media Access Control (MAC) and Encode-Decode (ENDEC) with an AUI interface and 10BASE-T transceiver functions in accordance with the IEEE 802 3 standards The DP83902A’s 10BASE-T transceiver fully com

Features

Single chip solution for IEEE 802 3 10BASE-T Integrated controller ENDEC and transceiver Y Full AUI interface Y No external precision components required Y 3 levels of loopback supported Transceiver Module Y Integrates transceiver electronics including Transmitter and receiver Collision detect heartbeat and jabber timer Link integrity test Y Link disable and polarity detection correction Y Integrated smart receive squelch Y Reduced squelch level for extended distance cable operation (100-pin QFP.
