CS5530A - Geode CS5530A I/O Companion Multi-Function South Bridge

Name: CS5530A
SKU: CS5530A-554199

National Semiconductor

📥 Download Datasheet

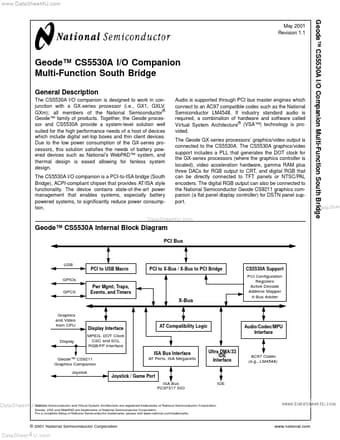

CS5530A Datasheet Preview — Preview of CS5530A PDF

Datasheet Details

Part number	CS5530A
Manufacturer	National Semiconductor
File Size	5.46 MB
Description	Geode CS5530A I/O Companion Multi-Function South Bridge
Datasheet	CS5530A_NationalSemiconductor.pdf

CS5530A Product details

Description

The CS5530A I/O companion is designed to work in conjunction with a GX-series processor (i.e., GX1, GXLV, GXm); all members of the National Semiconductor® Geode™ family of products.

Features

General Features Designed for use with National’s Geode GX-series processors 352 PBGA (Plastic Ball Grid Array) package 3.3V or 5.0V PCI bus compatible 5.0V tolerant on all inputs 3.3V core XpressAUDIO Provides "back-end" hardware support via six buffered PCI bus masters AC97 codec interface:.
Specification Revision 1.3, 2.0, and 2.1 compliant interface. Note that the codec (e. g. , LM4548) must have SRC (sample rate conversion) support.
