CS5531-AS - 16-bit and 24-bit ADC

Name: CS5531-AS
SKU: CS5531-AS-1432271

Cirrus Logic

📥 Download Datasheet

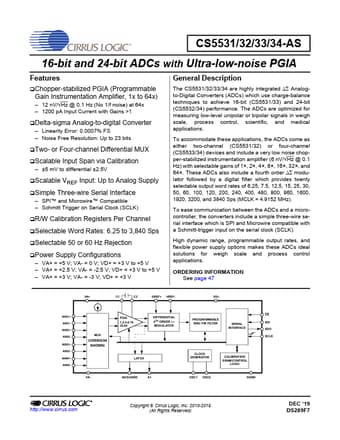

CS5531-AS Datasheet Preview — Preview of CS5531-AS PDF

Datasheet Details

Part number	CS5531-AS
Manufacturer	Cirrus Logic
File Size	2.82 MB
Description	16-bit and 24-bit ADC
Datasheet	CS5531-AS-CirrusLogic.pdf

CS5531-AS Product details

Description

The CS5531/32/33/34 are highly integrated  Analogto-Digital Converters (ADCs) which use charge-balance techniques to achieve 16-bit (CS5531/33) and 24-bit (CS5532/34) performance.

Features

Chopper-stabilized PGIA (Programmable Gain Instrumentation Amplifier, 1x to 64x).
12 nV/Hz @ 0.1 Hz (No 1/f noise) at 64x.
1200 pA Input Current with Gains >1 Delta-sigma Analog-to-digital Converter.
Linearity Error: 0.0007% FS.
Noise Free Resolution: Up to 23 bits Two- or Four-channel Differential MUX Scalable Input Span via Calibration.
±5 mV to differential ±2.5V Scalable VREF Input: Up to Analog Supply Simple Three-wire Serial Interface.
