CS5533 - 16-bit and 24-bit ADC

Name: CS5533
SKU: CS5533-158594

Cirrus Logic

📥 Download Datasheet

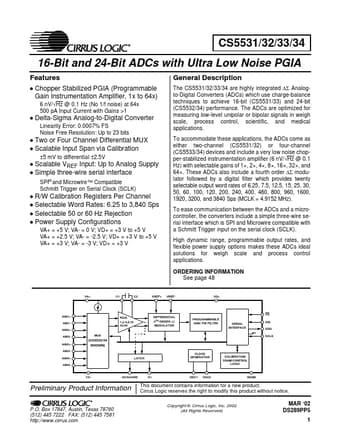

CS5533 Datasheet Preview — Preview of CS5533 PDF

Datasheet Details

Part number	CS5533
Manufacturer	Cirrus Logic
File Size	566.30 KB
Description	16-bit and 24-bit ADC
Datasheet	CS5533_CirrusLogic.pdf

CS5533 Product details

Description

The CS5531/32/33/34 are highly integrated ∆Σ Analogto-Digital Converters (ADCs) which use charge-balance techniques to achieve 16-bit (CS5531/33) and 24-bit (CS5532/34) performance.

Features

Chopper Stabilized PGIA (Programmable Gain Instrumentation Amplifier, 1x to 64x) 6 nV/√Hz @ 0.1 Hz (No 1/f noise) at 64x 500 pA Input Current with Gains >1 Delta-Sigma Analog-to-Digital Converter Linearity Error: 0.0007% FS Noise Free Resolution: Up to 23 bits Two or Four Channel Differential MUX Scalable Input Span via Calibration ±5 mV to differential ±2.5V Scalable VREF Input: Up to Analog Supply Simple three-wire serial interface SPI®and Microwire™ Compatible Schmitt Trigger on Serial Clock.
