CGS2536TV - Commercial/ Industrial Quad 1 to 4 Clock Drivers

National Semiconductor

📥 Download Datasheet

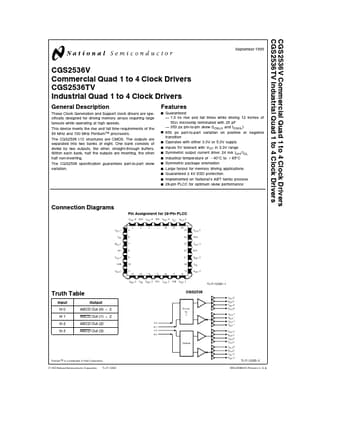

CGS2536TV Datasheet Preview — Preview of CGS2536TV PDF

Datasheet Details

Part number	CGS2536TV
Manufacturer	National Semiconductor
File Size	127.42 KB
Description	Commercial/ Industrial Quad 1 to 4 Clock Drivers
Datasheet	CGS2536TV_NationalSemiconductor.pdf

CGS2536TV Product details

Description

These Clock Generation and Support clock drivers are specifically designed for driving memory arrays requiring large fanouts while operating at high speeds This device meets the rise and fall time requirements of the 90 MHz and 100 MHz Pentium TM procrssors The CGS2536 I O structures are CMOS The outputs are separated into two banks of eight One bank consists of divide by two outputs the other straight-through buffers Within each bank half the outputs are inverting the other half non-inverting T

Features

Y Y Y Y Y Y Y Y Y Y Y Guaranteed 1 0 ns rise and fall times while driving 12 inches of 50X microstrip terminated with 25 pF 350 ps pin-to-pin skew (tOSLH and tOSHL) 650 ps part-to-part variation on positive or negative transition Operates with either 3 3V or 5 0V supply Inputs 5V tolerant with VCC in 3 3V range Symmetric output current drive 24 mA IOH IOL Industrial temperature of b40 C to a 85 C Symmetric package orientation Large fanout for memory driving.
