CGS2535V - Commercial Quad 1 to 4 Clock Drivers/Industrial Quad 1 to 4 Clock Drivers

Name: CGS2535V
SKU: CGS2535V-104695

National Semiconductor

📥 Download Datasheet

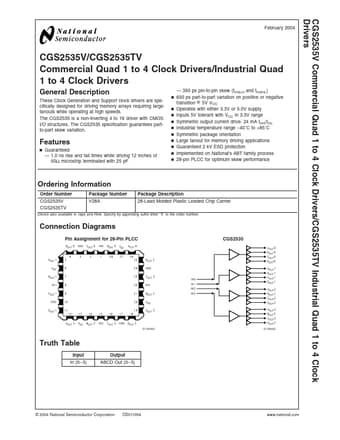

CGS2535V Datasheet Preview — Preview of CGS2535V PDF

Datasheet Details

Part number	CGS2535V
Manufacturer	National Semiconductor
File Size	131.83 KB
Description	Commercial Quad 1 to 4 Clock Drivers/Industrial Quad 1 to 4 Clock Drivers
Datasheet	CGS2535V_NationalSemiconductor.pdf

CGS2535V Product details

Description

These Clock Generation and Support clock drivers are specifically designed for driving memory arrays requiring large fanouts while operating at high speeds.

Features

n Guaranteed:.
1.0 ns rise and fall times while driving 12 inches of 50Ω microstrip terminated with 25 pF.
350 ps pin-to-pin skew (tOSLH and tOSHL) n 650 ps part-to-part variation on positive or negative transition @ 5V VCC n Operates with either 3.3V or 5.0V supply n Inputs 5V tolerant with VCC in 3.3V range n Symmetric output current drive: 24 mA IOH/IOL n Industrial temperature range.
40˚C to +85˚C n Symmetric package orientation n Large fanout for memory driving ap.
