CGS2534TV - Quad 1 to 4 Clock Drivers

National Semiconductor

📥 Download Datasheet

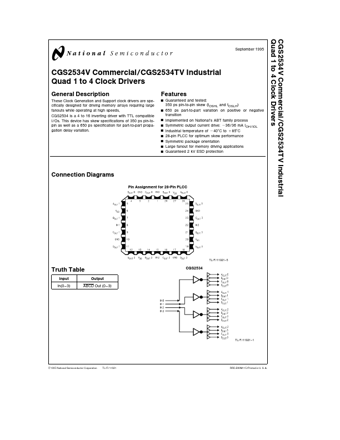

CGS2534TV Datasheet Preview — Preview of CGS2534TV PDF

Datasheet Details

Part number	CGS2534TV
Manufacturer	National Semiconductor
File Size	102.12 KB
Description	Quad 1 to 4 Clock Drivers
Datasheet	CGS2534TV_NationalSemiconductor.pdf

CGS2534TV Product details

Description

These Clock Generation and Support clock drivers are specifically designed for driving memory arrays requiring large fanouts while operating at high speeds CGS2534 is a 4 to 16 inverting driver with TTL compatible I Os This device has skew specifications of 350 ps pin-topin as well as a 650 ps specification for part-to-part propagation delay variation

Features

Y Y Y Y Y Y Y Y Y Guaranteed and tested 350 ps pin-to-pin skew (tOSHL and tOSLH) 650 ps part-to-part variation on positive or negative transition Implemented on National’s ABT family process Symmetric output current drive b36 36 mA IOH IOL Industrial temperature of b40 C to a 85 C 28-pin PLCC for optimum skew performance Symmetric package orientation Large fanout for memory driving.
