LM3414 - 1A 60W Common Anode Capable Constant Current Buck LED Driver

National Semiconductor Corporation

The LM3414 by National Semiconductor Corporation is a 1A 60W Common Anode Capable Constant Current Buck LED Driver. Below is the official datasheet preview.

📥 Download Datasheet

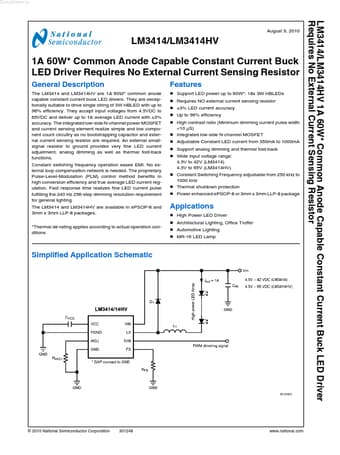

LM3414 1A 60W Common Anode Capable Constant Current Buck LED Driver by National Semiconductor Corporation - Datasheet Preview — Official preview page of the **LM3414** 1A 60W Common Anode Capable Constant Current Buck LED Driver datasheet (National Semiconductor Corporation).

Datasheet Details

Part number	LM3414
Manufacturer	National Semiconductor Corporation
File Size	410.90 KB
Description	1A 60W Common Anode Capable Constant Current Buck LED Driver
Datasheet	LM3414_NationalSemiconductorCorporation.pdf
Additional preview pages of the LM3414 datasheet.

LM3414 Product details

Description

The LM3414 and LM3414HV are 1A 60W common anode capable constant current buck LED drivers.

Features

Support LED power up to 60W.
: 18x 3W HBLEDs Requires NO external current sensing resistor ±3% LED current accuracy Up to 96% efficiency High contrast ratio (Minimum dimming current pulse width.
