LM341 - 3-Terminal Positive Voltage Regulators

Download the LM341 datasheet PDF. This datasheet also covers the LM3 variant, as both devices belong to the same 3-terminal positive voltage regulators family and are provided as variant models within a single manufacturer datasheet.

Description

The LM341 and LM78MXX series of three-terminal positive voltage regulators employ built-in current limiting, thermal shutdown, and safe-operating area protection which makes them virtually immune to damage from output overloads.

Features

  • Output current in excess of 0.5A No external components Internal thermal overload protection Internal short circuit current-limiting Output transistor safe-area compensation Available in TO-220, TO-39, and TO-252 D-PAK packages n Output voltages of 5V, 12V, and 15V n n n n n n Connection Diagrams TO-39 Metal Can Package (H) DS010484-5 Bottom View Order Number LM78M05CH, LM78M12CH or LM78M15CH See NS Package Number H03A TO-220 Power Package (T) DS010484-6 Top View Order Number LM341T-5.0, LM.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LM3-41T.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
LM341 3-Terminal 500-mA Positive Voltage Regulators Texas Instruments
LM3410 Constant-Current Boost and SEPIC LED Driver Texas Instruments
LM3410-Q1 Constant-Current Boost and SEPIC LED Driver Texas Instruments
LM3411 Precision Secondary Regulator/Driver Texas Instruments
LM3414 60-W Common Anode-Capable Constant Current Buck LED Driver Texas Instruments

Other Datasheets by National Semiconductor (Texas Instruments)

Part Number Description
LM3410 Constant Current Boost and SEPIC LED Driver
LM3411 Precision Secondary Regulator/Driver
LM34 Precision Fahrenheit Temperature Sensors
LM340 3-Terminal Positive Regulators
LM3401 Quad Amplifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

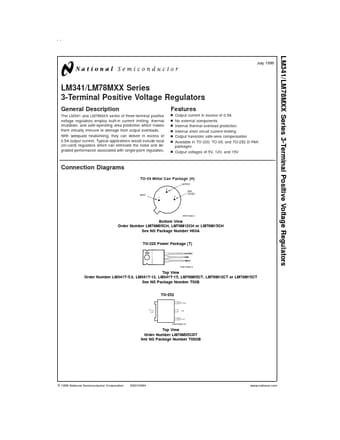

LM341/LM78MXX Series 3-Terminal Positive Voltage Regulators July 1999 LM341/LM78MXX Series 3-Terminal Positive Voltage Regulators General Description The LM341 and LM78MXX series of three-terminal positive voltage regulators employ built-in current limiting, thermal shutdown, and safe-operating area protection which makes them virtually immune to damage from output overloads. With adequate heatsinking, they can deliver in excess of 0.5A output current. Typical applications would include local (on-card) regulators which can eliminate the noise and degraded performance associated with single-point regulation. Features Output current in excess of 0.
