LM3414S - 20V N-Channel Enhancement Mode MOSFET

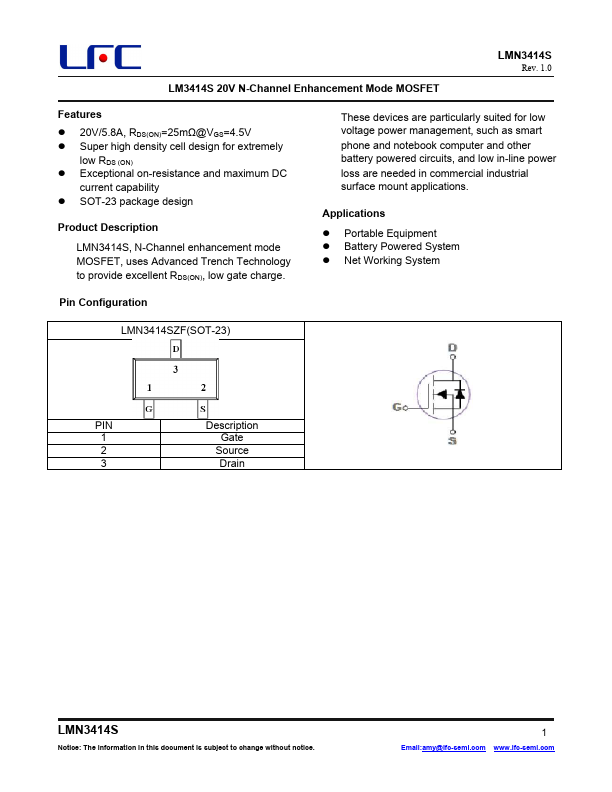

The LM3414S by LFC semi is a 20V N-Channel Enhancement Mode MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

LM3414S 20V N-Channel Enhancement Mode MOSFET by LFC semi - Datasheet Preview — Official preview page of the **LM3414S** 20V N-Channel Enhancement Mode MOSFET datasheet (LFC semi).

Datasheet Details

Part number	LM3414S
Manufacturer	LFC semi
File Size	488.13 KB
Description	20V N-Channel Enhancement Mode MOSFET
Datasheet	LM3414S-LFCsemi.pdf

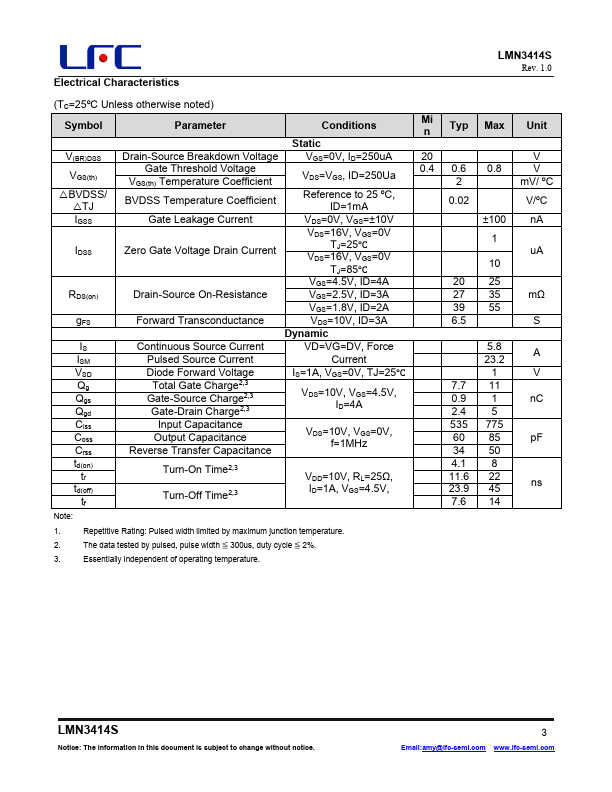

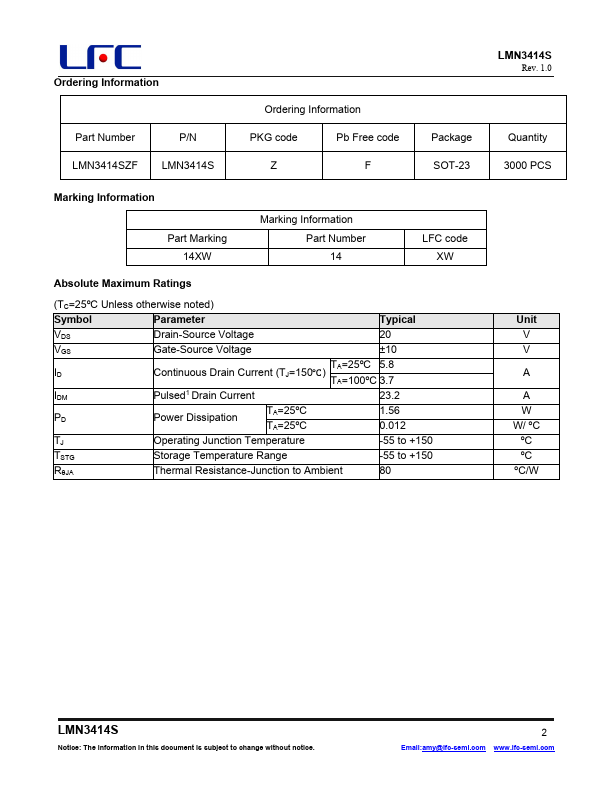

Additional preview pages of the LM3414S datasheet.

LM3414S Product details

Description

LMN3414S, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. Portable Equipment Battery Powered System Net Working System Pin Configuration LMN3414SZF(SOT-23) PI

Features

20V/5.8A, RDS(ON)=25mΩ@VGS=4.5V.
Super high density cell design for extremely low RDS (ON).
Exceptional on-resistance and maximum DC current capability.
SOT-23 package design Product.
