SRF3020CT SCHOTTKY BARRIER RECTIFIER

SRF3020CT Description

SRF3020CT THRU SRF30200CT SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 200 Volts Forward Current - 30Amperes .

SRF3020CT Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0 Metal silicon junction ,majority carrier conduction Guard ring for overvoltage protection Low power loss ,high efficiency High current capability ,Low forward voltage drop Single rectifier construction High surge ca

SRF3020CT Applications

* High temperature soldering guaranteed:260 C/10 seconds, 0.25"(6.35mm)from case Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC 0.177(4.50) 0.138(3.50) 0.056(1.43) 0.043(1.10) MECHANICAL DATA 0.410(10.41) 0.390(9.91) ITO-220AB 0.140(3.55) 0.128(3.25) DIA 0.111(2.83) 0.101(2.57

📥 Download Datasheet

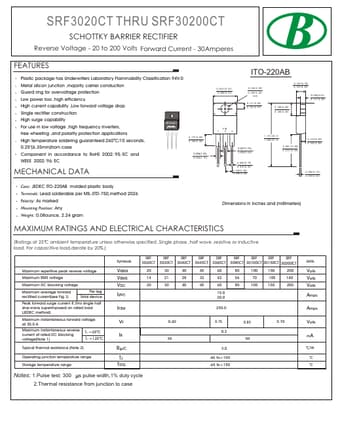

Preview of SRF3020CT PDF
datasheet Preview Page 2

Datasheet Details

Part number
SRF3020CT
Manufacturer
Nanjing
File Size
66.76 KB
Datasheet
SRF3020CT-Nanjing.pdf
Description
SCHOTTKY BARRIER RECTIFIER
