SRF3020 SCHOTTKY BARRIER RECTIFIER

SRF3020 Description

SRF3020 THRU SRF30200 SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 200 Volts Forward Current - 30Amperes o .

SRF3020 Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0 Metal silicon junction ,majority carrier conduction Guard ring for overvoltage protection Low power loss ,high efficiency High current capability ,Low forward voltage drop Single rectifier construction High surge capabilit

SRF3020 Applications

* High temperature soldering guaranteed:260 C/10 seconds, 0.25"(6.35mm)from case Component in accordance to RoHS 20011/65/ EC .108 .040 (1.0) MAX. VOLTAGE RANGE 20 to200 Volts CURTRTTETNT T 30.0 Ampere ITO-220AB .412 (10.5) MAX. 3.8 f +.2 HOLE THRU .189(4.8) .165(4.2) .248 (6.3) .630 (16.0) MAX

📥 Download Datasheet

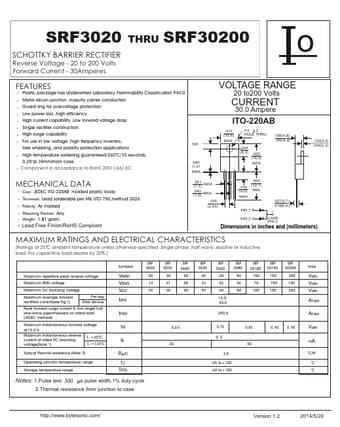

Preview of SRF3020 PDF
datasheet Preview Page 2

Datasheet Details

Part number
SRF3020
Manufacturer
Byte Sonic
File Size
585.24 KB
Datasheet
SRF3020-ByteSonic.pdf
Description
SCHOTTKY BARRIER RECTIFIER
