SRF30200, SRF3020 SCHOTTKY BARRIER RECTIFIER

SRF30200 Description

SRF3020 THRU SRF30200 SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 200 Volts Forward Current - 30Amperes o .

SRF30200 Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0 Metal silicon junction ,majority carrier conduction Guard ring for overvoltage protection Low power loss ,high efficiency High current capability ,Low forward voltage drop Single rectifier construction High surge capabilit

SRF30200 Applications

* High temperature soldering guaranteed:260 C/10 seconds, 0.25"(6.35mm)from case Component in accordance to RoHS 20011/65/ EC .108 .040 (1.0) MAX. VOLTAGE RANGE 20 to200 Volts CURTRTTETNT T 30.0 Ampere ITO-220AB .412 (10.5) MAX. 3.8 f +.2 HOLE THRU .189(4.8) .165(4.2) .248 (6.3) .630 (16.0) MAX

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SRF30200, SRF3020. Please refer to the document for exact specifications by model.

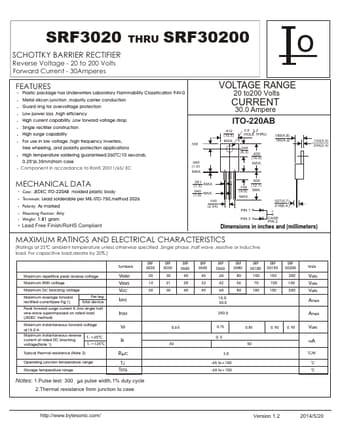

datasheet Preview Page 2

Datasheet Details

Part number
SRF30200, SRF3020
Manufacturer
Byte Sonic
File Size
585.24 KB
Datasheet
SRF3020-ByteSonic.pdf
Description
SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SRF30200, SRF3020.
Please refer to the document for exact specifications by model.
