TEA6321 - Sound fader control circuit

NXP

📥 Download Datasheet

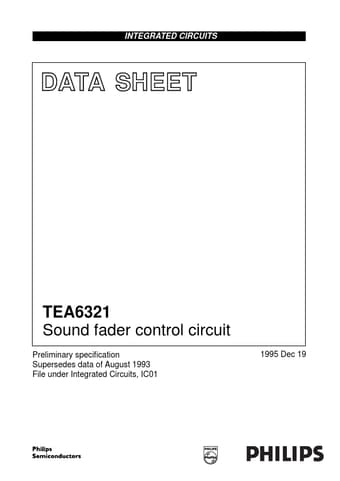

TEA6321 Datasheet Preview — Preview of TEA6321 PDF

Datasheet Details

Part number	TEA6321
Manufacturer	NXP
File Size	247.35 KB
Description	Sound fader control circuit
Datasheet	TEA6321_PhilipsSemiconductors.pdf

TEA6321 Product details

Description

TEA6321 The sound fader control circuit TEA6321 is an I2C-bus controlled stereo preamplifier for car radio hi-fi sound applications.MAX.9.5 +20 +18 +12 UNIT V mA mV dB dB dB dB dB dB dB dB ORDERING INFORMATION TYPE NUMBER TEA6321T PACKAGE NAME SO32 DESCRIPTION plastic small outline package; 32 leads; body width 7.5 mm VERSION SOT287-1 1995 Dec 19 2 270 nF 3.4 k Ω 5.6 nF 8.2 nF 20 kΩ handbook, full pagewidth 1995 D

Features

Source selector for four stereo and one mono inputs.
Interface for noise reduction circuits.
Interface for external equalizer.
Volume, balance and fader control.
Special loudness characteristic automatically controlled in combination with volume setting.
Bass control with equalizer filters.
Treble control.
Mute control at audio signal zero crossing.
Fast mute control via I2C-bus.
Fast mute control via pin.
