TEA6320T - Sound fader control circuit

NXP

The TEA6320T by NXP is a Sound fader control circuit. Below is the official datasheet preview.

📥 Download Datasheet

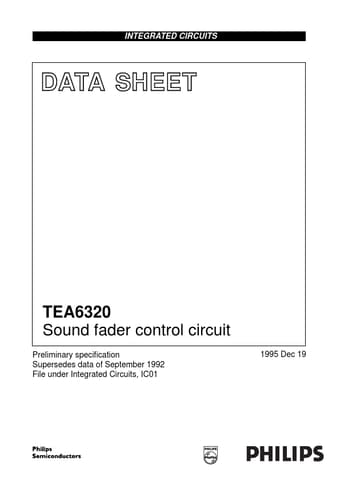

TEA6320T Sound fader control circuit by NXP - Datasheet Preview — Official preview page of the **TEA6320T** Sound fader control circuit datasheet (NXP).

Datasheet Details

Part number	TEA6320T
Manufacturer	NXP
File Size	252.59 KB
Description	Sound fader control circuit
Datasheet	TEA6320T_PhilipsSemiconductors.pdf
Additional preview pages of the TEA6320T datasheet.

TEA6320T Product details

Description

TEA6320 The sound fader control circuit TEA6320 is an I2C-bus controlled stereo preamplifier for car radio hi-fi sound applications.MAX.9.5 +20 +15 +12 UNIT V mA mV dB dB dB dB dB dB dB dB ORDERING INFORMATION TYPE NUMBER TEA6320 TEA6320T PACKAGE NAME SDIP32 SO32 DESCRIPTION plastic shrink dual in-line package; 32 leads (400 mil) plastic small outline package; 32 leads; body width 7.5 mm VERSION SOT232-1 SOT287-1 1995

Features

Source selector for four stereo and one mono inputs.
Interface for noise reduction circuits.
Interface for external equalizer.
Volume, balance and fader control.
Special loudness characteristic automatically controlled in combination with volume setting.
Bass and treble control.
Mute control at audio signal zero crossing.
Fast mute control via I2C-bus.
Fast mute control via pin.
I2C-bus control for all fun.
