TEA0677 - Dual pre-amplifier and equalizer for reverse tape decks

NXP

📥 Download Datasheet

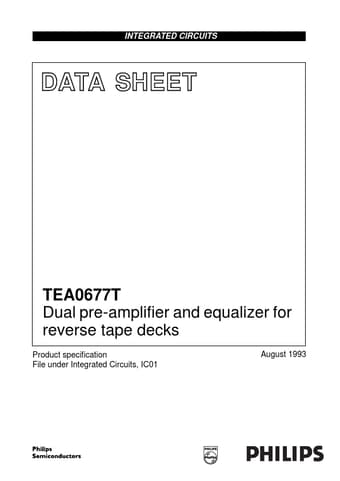

TEA0677 Datasheet Preview — Preview of TEA0677 PDF

Datasheet Details

Part number	TEA0677
Manufacturer	NXP
File Size	147.42 KB
Description	Dual pre-amplifier and equalizer for reverse tape decks
Datasheet	TEA0677_PhilipsSemiconductors.pdf

TEA0677 Product details

Description

TEA0677T The TEA0677T is a monolithic bipolar integrated circuit intended for applications in car radios.It includes head and equalization amplifiers with electronically switchable time constants.Furthermore it includes electronically switchable inputs for tape drives with reverse heads.The device is intended to replace the regular TEA0675T in low-cost car radios using the same PCB.External components that are necessary for Dolby B and music search

Features

Head pre-amplifiers.
Reverse head switching.
Equalization with electronically switched time constants.
0 dB = 387.5 mV.
Pin compatible to TEA0675 Dolby B, music search IC.
