TEA0676T - Dual pre-amplifier and equalizer for reverse tape decks

📥 Download Datasheet

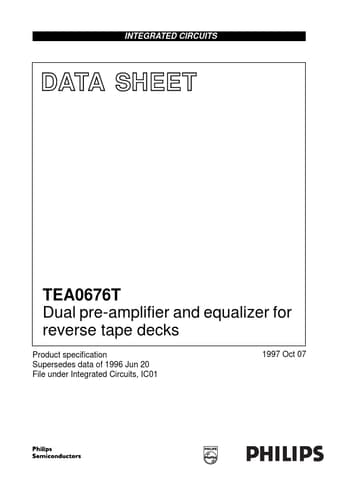

Preview of TEA0676T PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number TEA0676T
Manufacturer NXP
File Size 163.51 KB
Description Dual pre-amplifier and equalizer for reverse tape decks
Datasheet download datasheet TEA0676T_PhilipsSemiconductors.pdf

TEA0676T Product details

Description

TEA0676T The TEA0676T is a monolithic bipolar integrated circuit intended for applications in car radios.It includes head and equalization amplifiers with electronically switchable time constants.Furthermore it includes electronically switchable inputs for tape drivers with reverse heads.The device will operate with power supplies in a range of 7.6 to 12.0 V.The output overload level increases with the increase in supply voltage, so it is advisable to use a regulated power supply or a supp

Features
