TEA0675T - Dual Dolby* B-type noise reduction circuit for playback applications

NXP

The TEA0675T by NXP is a Dual Dolby* B-type noise reduction circuit for playback applications. Below is the official datasheet preview.

📥 Download Datasheet

TEA0675T Dual Dolby* B-type noise reduction circuit for playback applications by NXP - Datasheet Preview — Official preview page of the **TEA0675T** Dual Dolby* B-type noise reduction circuit for playback applications datasheet (NXP).

Datasheet Details

Part number	TEA0675T
Manufacturer	NXP
File Size	337.08 KB
Description	Dual Dolby* B-type noise reduction circuit for playback applications
Datasheet	TEA0675T_PhilipsSemiconductors.pdf

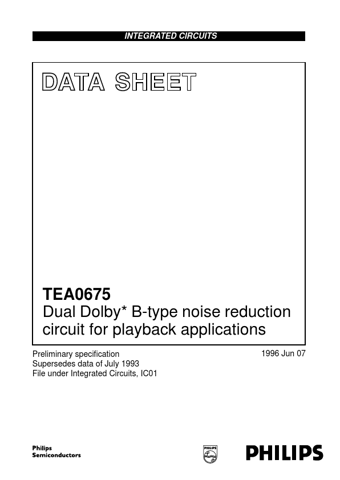

Additional preview pages of the TEA0675T datasheet.

TEA0675T Product details

Description

The TEA0675 is a bipolar integrated circuit that provides two channels of Dolby B noise reduction for playback applications in car radios. 78 MIN. 26 84 TYP.

Features

Dual noise reduction (NR) channels.
Head pre-amplifiers.
Reverse head switching.
Automatic Music Search (AMS).
Music scan.
Equalization with electronically switched time constants.
Dolby reference level = 387.5 mV.
24 pins.
Improved EMC behaviour.
