TDA8581 - Multi-purpose high-gain power amplifier

NXP

📥 Download Datasheet

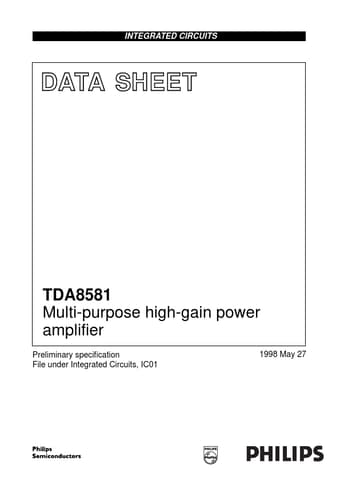

TDA8581 Datasheet Preview — Preview of TDA8581 PDF

Datasheet Details

Part number	TDA8581
Manufacturer	NXP
File Size	113.81 KB
Description	Multi-purpose high-gain power amplifier
Datasheet	TDA8581_PhilipsSemiconductors.pdf

TDA8581 Product details

Description

plastic DIL-bent-SIL power package; 17 leads (lead length 12 mm) GENERAL DESCRIPTION TDA8581 The TDA8581 is a stereo bridge-tied load (BTL) or a quad single-ended amplifier that operates over a wide supply voltage range from 8 to 28 V.This makes it suitable for many applications, such as car radios, television and home-sound systems.Because of an internal voltage buffer, this device can be used without a capacitor connected in series with the load (SE application).A combined BTL and 2 × SE

Features

General.
High gain.
Operating voltage from 8 to 28 V.
Low distortion.
Few external components, fixed gain.
High output power.
Can be used as a stereo amplifier in bridge-tied load (BTL) or quad single-ended (SE) amplifiers.
Single-ended mode without loudspeaker capacitor.
Mute and standby mode with one- or two-pin operation.
Diagnostic information for Dynamic Distortion Detector (DDD), high temperature (145 °C) and.
