TDA8589xJ - I2C Bus Controlled 4 x 45 Watt Power Amplifier and Multiple Voltage Regulator

This page provides the datasheet information for the TDA8589xJ, a member of the TDA8589J I2C Bus Controlled 4 x 45 Watt Power Amplifier and Multiple Voltage Regulator family.

Description

Amplifiers The TDA8589 has a complementary quad audio power amplifier that uses BCDMOS technology.

It contains four amplifiers configured in Bridge Tied Load (BTL) to drive speakers for front and rear left and right channels.

Features

  • Amplifiers.
  • I2C-bus control.
  • Can drive a 2 Ω load with a battery voltage of up to 16 V and a 4 Ω load with a battery voltage of up to 18 V.
  • DC load detection: open, short and present.
  • AC load (tweeter) detection.
  • Programmable clip detect 1 % or 3%.
  • Programmable thermal protection pre-warning.
  • Independent short-circuit protection per channel.
  • Low gain line driver mode (20 dB).
  • Loss-of-ground and open VP safe.

📥 Download Datasheet

Datasheet preview – TDA8589xJ

Datasheet Details

Part number TDA8589xJ
Manufacturer NXP Semiconductors
File Size 394.28 KB
Description I2C Bus Controlled 4 x 45 Watt Power Amplifier and Multiple Voltage Regulator
Datasheet download datasheet TDA8589xJ Datasheet
Additional preview pages of the TDA8589xJ datasheet.

📁 Similar Datasheet

  • TDA8589BJ - I2C Bus Controlled 4 x 45 Watt Power Amplifier and Multiple Voltage Regulator (Philips)
  • TDA8588AJ - Power Amplifier and Multiple Voltage Regulator (Philips)
  • TDA8588BJ - Power Amplifier and Multiple Voltage Regulator (Philips)
  • TDA8588J - Power Amplifier and Multiple Voltage Regulator (Philips)
  • TDA8547 - 2 x 0.7W BTL AUDIO AMPLIFIER (UTC)
  • TDA8559T - Low-voltage stereo headphone amplifier (Philips)
  • TDA8566 - stereo BTL car radio power amplifier (NXP Semiconductors)
  • TDA8577 - Dual common-mode rejection differential line receiver (Philips)
  • TDA8595 - I2C-bus controlled 4 x 45 W power amplifer (NXP Semiconductors)
  • TDA8025 - IC card interface (NXP Semiconductors)
Other Datasheets by NXP
  • TDA8589J - I2C Bus Controlled 4 x 45 Watt Power Amplifier and Multiple Voltage Regulator
  • TDA8580 - Multi-purpose power amplifier
  • TDA8580J - Multi-purpose power amplifier
  • TDA8581 - Multi-purpose high-gain power amplifier
  • TDA8586 - Power amplifier with load detection and auto BTL/SE selection
  • TDA8587J - 4 x 25 W BTL power amplifier
  • TDA8501 - PAL/NTSC encoder
  • TDA8505 - SECAM encoder

Full PDF Text Transcription

Click to expand full text

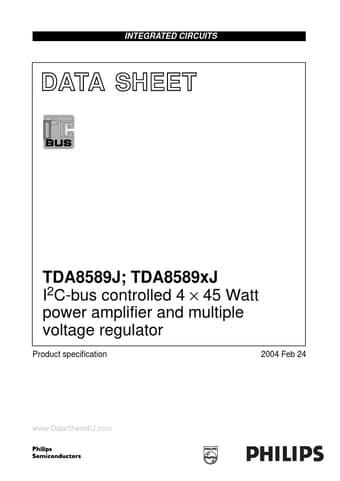

www.DataSheet4U.com INTEGRATED CIRCUITS DATA SHEET TDA8589J; TDA8589xJ I2C-bus controlled 4 × 45 Watt power amplifier and multiple voltage regulator Product specification 2004 Feb 24 www.DataSheet4U.com www.DataSheet4U.
